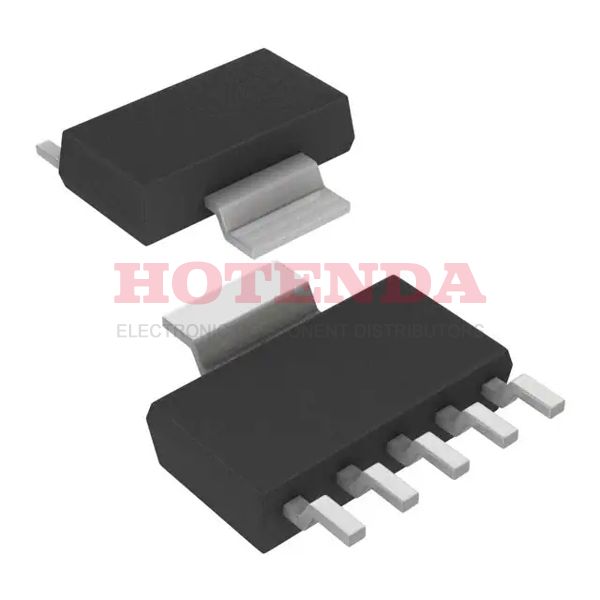

Name: MCP1825T-ADJE/DC
Brand: Microchip Technology
SKU: MCP1825T-ADJE/DC
Price: 0.69000 USD
Availability: InStock

new-10%

MCP1825T-ADJE/DC

Manufacturer part number:MCP1825T-ADJE/DC

Manufacturer:Microchip Technology

Description:Enable, Power Good Adjustable 1.27 mm MCP1825 PMIC -- Series 5 SOT-223-6

Case Package:SOT-23

Datasheet:MCP1825T-ADJE/DC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Surface Mount	YES
Number of Pins	5
Supplier Device Package	SOT-223-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	SOT-223
Junction to Case	15 °C/W
Input Voltage Range	6, 2.1 V
Maximum Input Voltage	6 V
Junction to Ambient	62 °C/W
Mounting	Surface Mount
Polarity Type	Positive
Regulator Output Type	Adjustable
Voltage Regulator Type	Linear
Dropout Voltage@Current (Max)	0.35@500mA
Operating Temperature Classification	Automotive
Package Type	SOT-223
Dropout Voltage@Current (Typ)	0.21@500mA
Operating Temp Range	-40C to 125C
Rad Hardened	No
Qualification	AEC-Q100
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1825
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
Series	--
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Termination	SMD/SMT
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn) - annealed
HTS Code	8542.39.00.01
Packing Method	TAPE AND REEL
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	1.27 mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1825
Pin Count	5
JESD-30 Code	R-PDSO-G5
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Voltage	5V
Output Type	Adjustable
Max Output Current	500mA
Polarity	Positive
Max Supply Voltage	6V
Min Supply Voltage	2.1V
Output Configuration	Positive
Output Current	0.5 A
Current - Output	500mA
Quiescent Current	220μA
Control Features	Enable, Power Good
Accuracy	2.5 %
Max Output Voltage	5V
Input Voltage (Min)	2.1(V)
Voltage - Output (Min/Fixed)	0.8V
Topology	LDO
Number of Regulators	1
Min Input Voltage	2.1V
Protection Features	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	220μA
Voltage Dropout (Max)	0.35V @ 500mA
PSRR	60dB (100Hz)
Reference Voltage	410mV
Seated Height-Max	1.8 mm
Dropout Voltage	210mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.21V
Min Output Voltage	800mV
Output Voltage1-Max	5 V
Output Voltage1-Min	0.8 V
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.5 A
Voltage - Output (Max)	5V
Dropout Voltage1-Max	0.35 V
Screening Level	Extended
Operating Temperature TJ-Max	125 °C
Input Bias Current	120μA
Output Voltage Accuracy	�0.5 %
Adjustability	ADJUSTABLE
Load Regulation-Max(%)	1%
Line Regulation-Max (%/V)	0.16
Line Regulation	0.05 %/V
Operating Temperature TJ-Min	-40 °C
Load Regulation	0.5 %
Input Voltage	6(V)
Product Category	LDO Voltage Regulators
Quiescent Current (Max)	0.22 mA
Height	1.65mm
Length	6.55mm
Width	3.55mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MCP1825T-ADJE/DC Product Details

MCP1825T-ADJE/DC Overview

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A SOT-223-6 case contains the Liner IC. In total, there are 5 terminations on the gadget. This PMIC chip has an output type of Adjustable. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 500mA. There are 5 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 5-pin is present on the chip. It is MCP1825 for this voltage regulator IC, just for your information. In this case, the regulator type is ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR, which corresponds to this voltage regulator IC. A packing method for the IC regulator is TAPE AND REEL, which means it is packed in a certain way. A maximum output current of 500mA is required to meet the operation requirements. It operates in the 220μA Quiescent Current state. In fact, it is voltage regulator IC of the -- Series of cameras. The top supply voltage is 6V volts.
