Name: MCP1825T-3302E/DCVAO
Brand: Microchip Technology
SKU: MCP1825T-3302E/DCVAO
Availability: InStock

new-10%

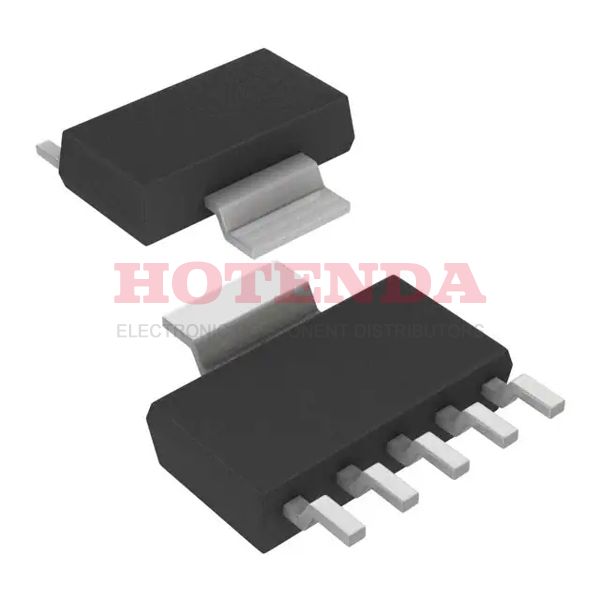

MCP1825T-3302E/DCVAO

Manufacturer part number:MCP1825T-3302E/DCVAO

Manufacturer:Microchip Technology

Description:Enable Fixed 1.27 mm MCP1825 PMIC Automotive, AEC-Q100 Series SOT-223-6

Case Package:SOT-23

Datasheet:MCP1825T-3302E/DCVAO Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Surface Mount	YES
Supplier Device Package	SOT-223-5
Number of Terminals	6
Package	Tape & Reel (TR)
Base Product Number	MCP1825
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	1.27 mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	MCP1825
JESD-30 Code	R-PDSO-G6
Voltage - Input (Max)	6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	500mA
Control Features	Enable
Output Voltage 1	3.3V
Input Voltage (Min)	3.7325V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	220μA
Voltage Dropout (Max)	0.35V @ 500mA
PSRR	60dB (100Hz)
Seated Height-Max	1.8 mm
Output Voltage1-Max	3.3825V
Output Voltage1-Min	3.2175 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.5 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.35 V
Screening Level	AEC-Q100; TS 16949
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Length	6.5mm
Width	3.5mm
RoHS Status	ROHS3 Compliant

MCP1825T-3302E/DCVAO Product Details

MCP1825T-3302E/DCVAO Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a SOT-223-6 package. There are 6 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 500mA. FYI, the basic part number for this IC regulator is MCP1825. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the Automotive, AEC-Q100 Series.
