Name: MCP1812BT-018/LB
Brand: Microchip Technology
SKU: MCP1812BT-018/LB
Availability: InStock

new-10%

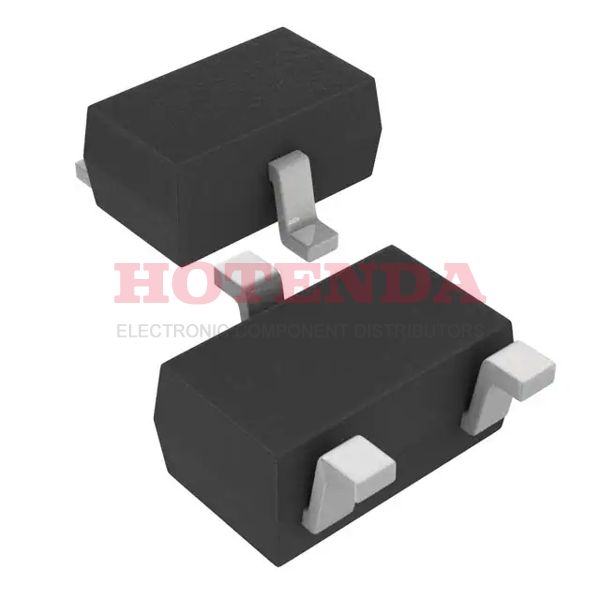

MCP1812BT-018/LB

Manufacturer part number:MCP1812BT-018/LB

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65mm PMIC - Series SC-70, SOT-323

Case Package:SOT-23

Datasheet:MCP1812BT-018/LB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Surface Mount	YES
Supplier Device Package	SC-70-3
Number of Terminals	3
Mounting Style	SMD/SMT
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1812
Mfr	Microchip Technology
Product Status	Obsolete
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	RECTANGULAR
Operating Temperature	-40°C~85°C TJ
Packaging	Tape & Reel (TR)
Series	-
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Type	Linear Regulator
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
JESD-30 Code	R-PDSO-G3
Current - Supply (Max)	220μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	1.8 V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	300 mA
Current - Output	300mA
Quiescent Current	250 nA
Control Features	Enable
Output Voltage 1	1.8V
Input Voltage (Min)	2.4V
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Protection Features	Over Current
Current - Quiescent (Iq)	0.5μA
Voltage Dropout (Max)	0.6V @ 300mA
PSRR	50dB (1kHz)
Seated Height-Max	1.1 mm
Dropout Voltage	400 mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.4V
Output Voltage1-Max	1.872 V
Output Voltage1-Min	1.728 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.3 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	85 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Line Regulation	20 mV
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Load Regulation	50 mV
Product	LDO Voltage Regulators
Product Category	LDO Voltage Regulators
Output Voltage Range	-
Length	2mm
Width	1.25 mm

MCP1812BT-018/LB Product Details

MCP1812BT-018/LB Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a SC-70, SOT-323 package. There are 3 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~85°C TJ degrees. This regulator's output function is configured to be Positive. Its current output stands at 300mA. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. This regulator IC is a typical PMIC - Power Management ICs. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. The way of packing the voltage regulator IC is TR. It operates in the 250 nA Quiescent Current state. It is part of the - Series.
