Name: MCP1812AT-028/OT
Brand: Microchip Technology
SKU: MCP1812AT-028/OT
Availability: InStock

new-10%

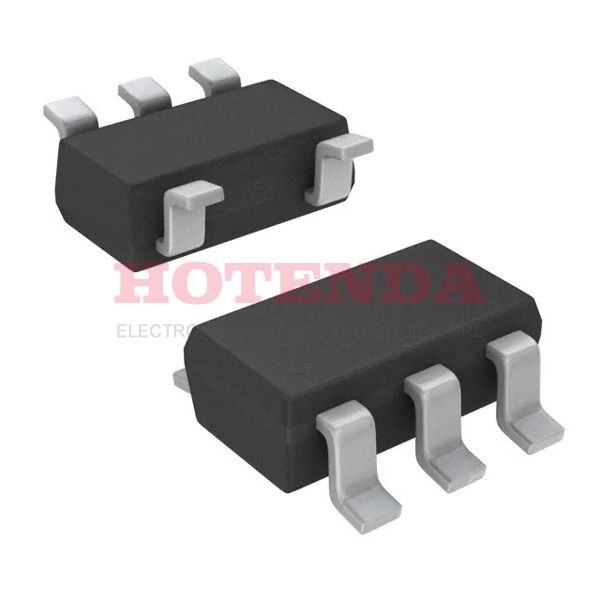

MCP1812AT-028/OT

Manufacturer part number:MCP1812AT-028/OT

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95mm PMIC - Series SC-74A, SOT-753

Case Package:SOT-23

Datasheet:MCP1812AT-028/OT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Supplier Device Package	SOT-23-5
Number of Terminals	5
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1812
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~85°C TJ
Packaging	Tape & Reel (TR)
Series	-
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95mm
Reach Compliance Code	compliant
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	220μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	300mA
Control Features	Enable
Output Voltage 1	2.8V
Input Voltage (Min)	3.4V
Voltage - Output (Min/Fixed)	2.8V
Number of Regulators	1
Protection Features	Over Current
Current - Quiescent (Iq)	0.5μA
Voltage Dropout (Max)	0.6V @ 300mA
PSRR	50dB (1kHz)
Seated Height-Max	1.45 mm
Dropout Voltage1-Nom	0.4V
Output Voltage1-Max	2.912 V
Output Voltage1-Min	2.688V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.3 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	85 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.8 V
Length	2.9mm
Width	1.6 mm

MCP1812AT-028/OT Product Details

MCP1812AT-028/OT Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a SC-74A, SOT-753 package. There are 5 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~85°C TJ degrees. This regulator's output function is configured to be Positive. Its current output stands at 300mA. To ensure prompt, sufficient performance, this part features 1 outputs in total. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. The way of packing the voltage regulator IC is TR. It is part of the - Series.
