Name: MCP1811AT-033/TT
Brand: Microchip Technology
SKU: MCP1811AT-033/TT
Availability: InStock

new-10%

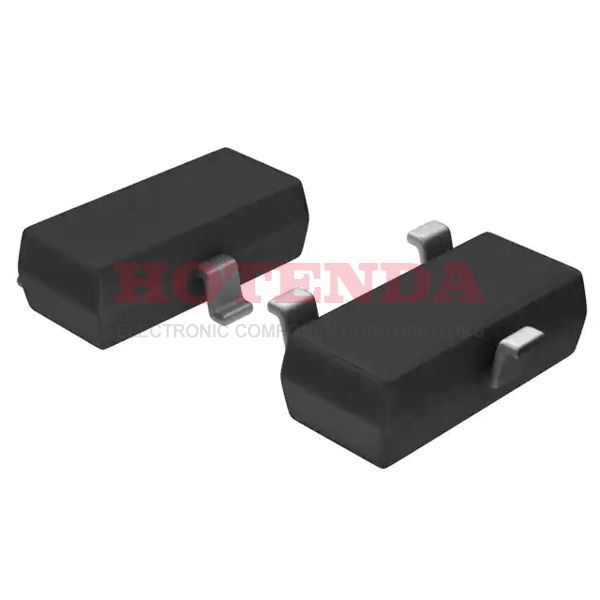

MCP1811AT-033/TT

Manufacturer part number:MCP1811AT-033/TT

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95mm PMIC - Series TO-236-3, SC-59, SOT-23-3

Case Package:SOT-23

Datasheet:MCP1811AT-033/TT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Surface Mount	YES
Supplier Device Package	SOT-23-3
Number of Terminals	3
Product Status	Obsolete
Mfr	Microchip Technology
Base Product Number	MCP1811
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Manufacturer	Microchip Technology Inc
Package Shape	RECTANGULAR
Operating Temperature	-40°C~85°C TJ
Packaging	Tape & Reel (TR)
Series	-
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Terminal Finish	Matte Tin (Sn)
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	30
JESD-30 Code	R-PDSO-G3
Current - Supply (Max)	110μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Output Voltage 1	3.3V
Input Voltage (Min)	3.9V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current
Current - Quiescent (Iq)	0.5μA
Voltage Dropout (Max)	0.6V @ 150mA
PSRR	50dB (1kHz)
Seated Height-Max	1.12 mm
Dropout Voltage1-Nom	0.4V
Output Voltage1-Max	3.432V
Output Voltage1-Min	3.168 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.15 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	85 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Length	2.9mm
Width	1.3 mm
RoHS Status	RoHS Compliant

MCP1811AT-033/TT Product Details

MCP1811AT-033/TT Overview

In the case of Tape & Reel (TR) cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a TO-236-3, SC-59, SOT-23-3 case. The PMIC chip has 3 terminations. Fixed is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~85°C TJ degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 150mA are being output by it at the moment. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. This device has a regulator type called FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which means it operates on a DC voltage. Packing the voltage regulator IC is done in a method called TR. The phone is a member of the - Series.
