Name: MCP1811AT-033/HCA
Brand: Microchip Technology
SKU: MCP1811AT-033/HCA
Availability: InStock

new-10%

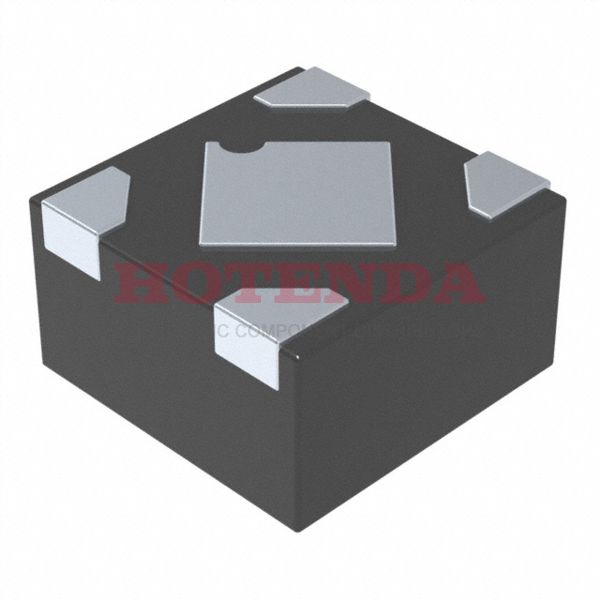

MCP1811AT-033/HCA

Manufacturer part number:MCP1811AT-033/HCA

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65mm PMIC - Series 4-UDFN Exposed Pad

Case Package:SOT-23

Datasheet:MCP1811AT-033/HCA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	4-UDFN Exposed Pad
Surface Mount	YES
Supplier Device Package	4-UDFN (1x1)
Number of Terminals	4
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1811
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C (TJ)
Series	-
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
Terminal Finish	Matte Tin (Sn)
Packing Method	TR
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	30
JESD-30 Code	S-PDSO-N4
Current - Supply (Max)	110 µA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Output Voltage 1	3.3V
Input Voltage (Min)	3.9V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	500 nA
Voltage Dropout (Max)	0.6V @ 150mA
Input Voltage (Max)	5.5V
PSRR	50dB (1kHz)
Seated Height-Max	0.6 mm
Dropout Voltage1-Nom	0.4V
Output Voltage1-Max	3.432V
Output Voltage1-Min	3.168V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.15A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.6V
Operating Temperature TJ-Max	85°C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Operating Temperature TJ-Min	-40°C
Output Voltage1-Nom	3.3 V
Length	1mm
Height Seated (Max)	0.6mm
Width	1mm
RoHS Status	ROHS3 Compliant

MCP1811AT-033/HCA Product Details

MCP1811AT-033/HCA Overview

The package contains a Tape & Reel (TR) case. In 4-UDFN Exposed Pad cases, it is packaged. This gadget has 4 terminations on it, each with a different function. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C ~ 85°C (TJ) degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 150mA at the moment. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. This device is controlled by a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type regulator. In this case, the IC voltage regulator will be packed in the following way. It belongs to the - Series of regulators.
