Name: MCP1811AT-030/LT
Brand: Microchip Technology
SKU: MCP1811AT-030/LT
Availability: InStock

new-10%

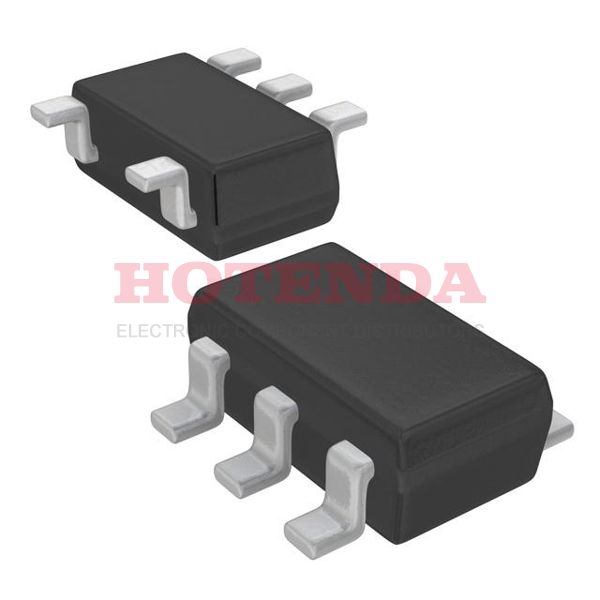

MCP1811AT-030/LT

Manufacturer part number:MCP1811AT-030/LT

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65mm PMIC MCP1811A Series 5-TSSOP, SC-70-5, SOT-353

Case Package:SOT-23

Datasheet:MCP1811AT-030/LT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Surface Mount	YES
Supplier Device Package	SC-70-5
Number of Terminals	5
Mounting Style	SMD/SMT
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1811
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Operating Temperature	-40°C~85°C TJ
Packaging	Tape & Reel (TR)
Series	MCP1811A
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Type	Linear Regulator
Terminal Finish	Matte Tin (Sn)
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	30
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	110μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	3 V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	150 mA
Current - Output	150mA
Quiescent Current	250 nA
Control Features	Enable
Output Voltage 1	3V
Input Voltage (Min)	3.6V
Voltage - Output (Min/Fixed)	3V
Number of Regulators	1
Protection Features	Over Current
Current - Quiescent (Iq)	0.5μA
Voltage Dropout (Max)	0.6V @ 150mA
PSRR	50dB (1kHz)
Seated Height-Max	1.1 mm
Dropout Voltage	400 mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.4V
Output Voltage1-Max	3.12 V
Output Voltage1-Min	2.88V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.15 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	85 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Line Regulation	20 mV
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
Load Regulation	25 mV
Product	LDO Voltage Regulators
Product Category	LDO Voltage Regulators
Output Voltage Range	-
Length	2mm
Width	1.25 mm
RoHS Status	RoHS Compliant

MCP1811AT-030/LT Product Details

MCP1811AT-030/LT Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 5-TSSOP, SC-70-5, SOT-353 case. On the regulater IC chip, there are a total of 5 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~85°C TJ degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 150mA. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. An example of such a component would be this PMIC - Power Management ICs component. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. As you can see from the picture, the regulator IC is packed in a certain way. It operates in the 250 nA Quiescent Current state. This model is a part of the MCP1811A Series and is of high quality.
