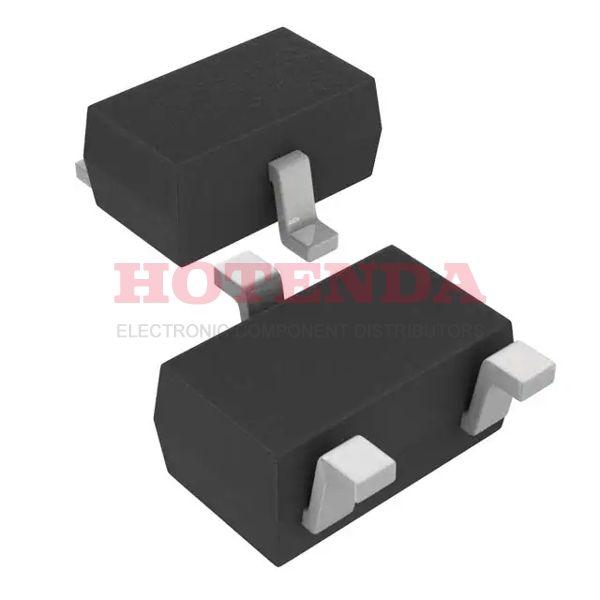

Name: MCP1811AT-028/LB
Brand: Microchip Technology
SKU: MCP1811AT-028/LB
Availability: InStock

new-10%

MCP1811AT-028/LB

Manufacturer part number:MCP1811AT-028/LB

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65mm PMIC MCP1811A Series SC-70, SOT-323

Case Package:SOT-23

Datasheet:MCP1811AT-028/LB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Surface Mount	YES
Supplier Device Package	SC-70-3
Number of Terminals	3
Mounting Style	SMD/SMT
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1811
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Operating Temperature	-40°C~85°C TJ
Packaging	Tape & Reel (TR)
Series	MCP1811A
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Type	Linear Regulator
Terminal Finish	Matte Tin (Sn)
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	30
JESD-30 Code	R-PDSO-G3
Current - Supply (Max)	110μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	2.8 V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	150 mA
Current - Output	150mA
Quiescent Current	250 nA
Control Features	Enable
Output Voltage 1	2.8V
Input Voltage (Min)	3.4V
Voltage - Output (Min/Fixed)	2.8V
Number of Regulators	1
Protection Features	Over Current
Current - Quiescent (Iq)	0.5μA
Voltage Dropout (Max)	0.6V @ 150mA
PSRR	50dB (1kHz)
Seated Height-Max	1.1 mm
Dropout Voltage	400 mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.4V
Output Voltage1-Max	2.912 V
Output Voltage1-Min	2.688V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.15 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	85 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Line Regulation	20 mV
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.8 V
Load Regulation	25 mV
Product	LDO Voltage Regulators
Product Category	LDO Voltage Regulators
Output Voltage Range	-
Length	2mm
Width	1.25 mm
RoHS Status	RoHS Compliant

MCP1811AT-028/LB Product Details

MCP1811AT-028/LB Overview

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A SC-70, SOT-323 case contains the Liner IC. In total, there are 3 terminations on the gadget. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~85°C TJ degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 150mA. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. I would describe this component as a typical PMIC - Power Management ICs component. In this case, the regulator type is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which corresponds to this voltage regulator IC. A packing method for the IC regulator is TR, which means it is packed in a certain way. It operates in the 250 nA Quiescent Current state. In fact, it is voltage regulator IC of the MCP1811A Series of cameras.
