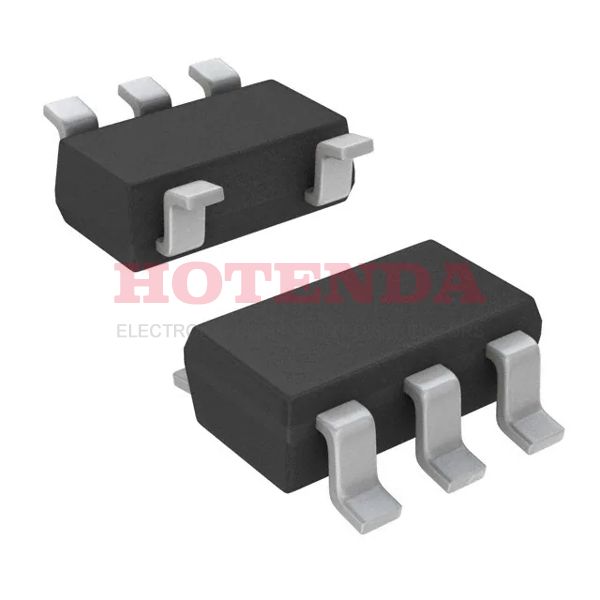

Name: MCP1755T-3302E/OT
Brand: Microchip Technology
SKU: MCP1755T-3302E/OT
Price: 0.69000 USD
Availability: InStock

new-10%

MCP1755T-3302E/OT

Manufacturer part number:MCP1755T-3302E/OT

Manufacturer:Microchip Technology

Description:Enable, Power Good Fixed 0.95 mm MCP1755 PMIC -- Series 5 SC-74A, SOT-753

Case Package:SOT-23

Datasheet:MCP1755T-3302E/OT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Number of Pins	5
Supplier Device Package	SOT-23-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	SOT-23
Junction to Case	81 °C/W
Input Voltage Range	3.6 to 16 V
Maximum Input Voltage	16 V
Junction to Ambient	256 °C/W
Mounting	Surface Mount
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1755
Mfr	Microchip Technology
Product Status	Active
Dimensions	3.1 x 1.8 x 1.3mm
Package Type	SOT-23
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
MSL	-
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Schedule B	8542390000
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2012
Series	--
Tolerance	2%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Type	High Performance
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Packing Method	TAPE AND REEL
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1755
Pin Count	5
JESD-30 Code	R-PDSO-G5
Function	LDO
Current - Supply (Max)	400μA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Voltage	3.3V
Output Type	Fixed
Max Output Current	300mA
Polarity	Positive
Number of Channels	1
Max Supply Voltage	16 V
Min Supply Voltage	3.8 V
Nominal Supply Current	68μA
Output Configuration	Positive
Output Current	300 mA
Current - Output	300mA
Quiescent Current	100μA
Control Features	Enable, Power Good
Accuracy	2 %
Output Voltage 1	3.3V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Min Input Voltage	3.6V
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	100µA
Voltage Dropout (Max)	0.5V @ 300mA
Max Input Voltage	16 V
PSRR	80dB (1kHz)
Seated Height-Max	1.45 mm
Dropout Voltage	300mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.3V
Power Supply Rejection Ratio (PSRR)	80dB
Output Voltage1-Max	3.366 V
Output Voltage1-Min	3.234 V
Regulator Type	Low Dropout Voltage
Voltage Tolerance-Max	2%
Output Current1-Max	0.3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.5 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	17.6 V
Nominal Output Voltage	3.3V
Output Voltage Accuracy	2 %
Adjustability	FIXED
Max Junction Temperature (Tj)	150 °C
Line Regulation	0.05 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Ambient Temperature Range High	125 °C
Load Regulation	0.5 %
Product	LDO Voltage Regulators
Product Category	LDO Voltage Regulators
Length	2.9mm
Width	1.8mm
Height	1.3mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MCP1755T-3302E/OT Product Details

MCP1755T-3302E/OT Overview

The package contains a Tape & Reel (TR) case. In SC-74A, SOT-753 cases, it is packaged. This gadget has 5 terminations on it, each with a different function. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 300mA at the moment. 5 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. As far as its dropout voltage is concerned, it is 10 volts. The regulator IC has 5 pins. I just wanted to let you know that this IC voltage regulator has the part number MCP1755 as its basic part number. This device is controlled by a Low Dropout Voltage type regulator. In this case, the IC voltage regulator will be packed in the following way. When operating at maximum output current, the regulator IC reaches 300mA. It operates in the 100μA Quiescent Current state. It belongs to the -- Series of regulators. Under 125 °C degrees, you should use the regulator IC. Temperatures below -40 °C are not allowed on the chip. The voltage regulator IC can operate at a supply voltage of 16 V volts. It is characterized as having 2% tolerance, which is quite low. Each of the 1 channels in this IC voltage regulator has a specific task to keep the system working.
