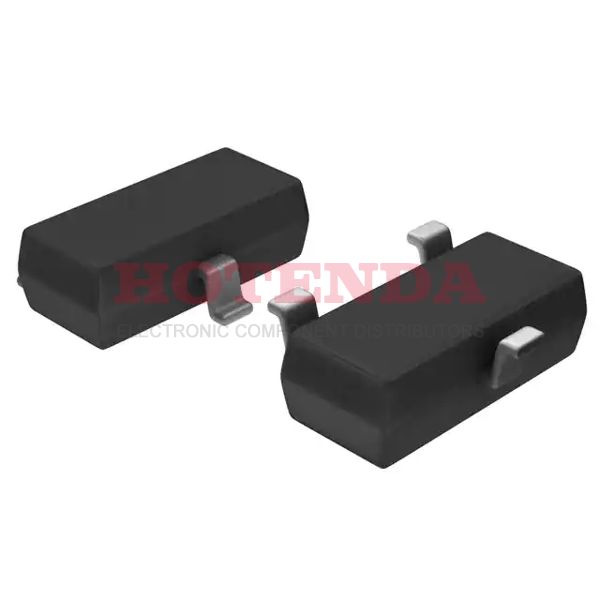

Name: MCP1703T-3302E/CBVAO
Brand: Microchip Technology
SKU: MCP1703T-3302E/CBVAO
Availability: InStock

new-10%

MCP1703T-3302E/CBVAO

Manufacturer part number:MCP1703T-3302E/CBVAO

Manufacturer:Microchip Technology

Description:- Fixed 0.95mm MCP1703 PMIC Automotive, AEC-Q100 Series TO-236-3, SC-59, SOT-23-3

Case Package:SOT-23

Datasheet:MCP1703T-3302E/CBVAO Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Surface Mount	YES
Supplier Device Package	SOT-23A-3
Number of Terminals	3
Package	Tape & Reel (TR)
Base Product Number	MCP1703
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.95mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	MCP1703
JESD-30 Code	R-PDSO-G3
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	250mA
Control Features	-
Output Voltage 1	3.3V
Input Voltage (Min)	2.7V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	5μA
Voltage Dropout (Max)	0.725V @ 250mA
PSRR	35dB (100Hz)
Seated Height-Max	1.45 mm
Output Voltage1-Max	3.399V
Output Voltage1-Min	3.201 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.25 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.725 V
Screening Level	AEC-Q100; TS 16949
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Length	2.9mm
Width	1.5 mm
RoHS Status	ROHS3 Compliant

MCP1703T-3302E/CBVAO Product Details

MCP1703T-3302E/CBVAO Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-236-3, SC-59, SOT-23-3 package. There are 3 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 250mA. FYI, the basic part number for this IC regulator is MCP1703. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It is part of the Automotive, AEC-Q100 Series.
