Name: MCP1703AT-4002E/CB
Brand: Microchip Technology
SKU: MCP1703AT-4002E/CB
Price: 0.73000 USD
Availability: InStock

new-10%

MCP1703AT-4002E/CB

Manufacturer part number:MCP1703AT-4002E/CB

Manufacturer:Microchip Technology

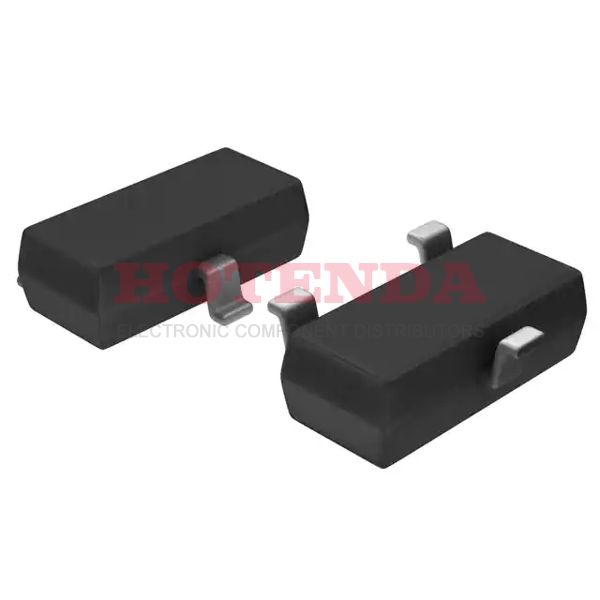

Description:-- Fixed 0.95mm MCP1703 PMIC -- Series 3 TO-236-3, SC-59, SOT-23-3

Case Package:SOT-23

Datasheet:MCP1703AT-4002E/CB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Surface Mount	YES
Package / Case	TO-236-3, SC-59, SOT-23-3
Mounting Type	Surface Mount
Number of Pins	3
Supplier Device Package	SOT-23A-3
Number of Terminals	3
Mounting Style	SMD/SMT
Supplier Package	SOT-23A
Junction to Case	110 °C/W
Input Voltage Range	16, 2.7 V
Maximum Input Voltage	16 V
Junction to Ambient	336 °C/W
Mounting	Surface Mount
Package Shape	RECTANGULAR
Product Status	Active
Mfr	Microchip Technology
Base Product Number	MCP1703
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
RoHS	Details
Brand	Microchip Technology
Manufacturer	Microchip
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Qualification	AEC-Q100
Published	2012
Series	--
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C~125°C
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Type	Low Quiescent Current
Terminal Finish	Matte Tin (Sn) - annealed
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1703
Pin Count	3
JESD-30 Code	R-PDSO-G3
Function	LDO
Number of Outputs	1
Voltage - Input (Max)	16V
Output Voltage	4V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.25 A
Current - Output	250mA
Quiescent Current	5μA
Control Features	--
Accuracy	2 %
Output Voltage 1	4V
Voltage - Output (Min/Fixed)	4V
Number of Regulators	1
Min Input Voltage	2.7V
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	5µA
Voltage Dropout (Max)	0.725V @ 250mA
PSRR	35dB (100Hz)
Seated Height-Max	1.45 mm
Dropout Voltage	525mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	4.08 V
Output Voltage1-Min	3.92 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.725 V
Screening Level	Extended
Operating Temperature TJ-Max	125 °C
Output Voltage Accuracy	2 %
Line Regulation	0.1 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	4 V
Load Regulation	1 %
Product	LDO Voltage Regulators
Product Category	LDO Voltage Regulators
Width	1.5 mm
Length	2.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MCP1703AT-4002E/CB Product Details

MCP1703AT-4002E/CB Overview

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A TO-236-3, SC-59, SOT-23-3 case is used for packaging. As you can see, the IC chip has 3 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 250mA. There are 3 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 3 pins are on the chip. For your information, this regulator's basic part number is MCP1703. The component shown here is a typical PMIC - Power Management ICs component. It is important to note that this device has a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR regulator type. It operates in the 5μA Quiescent Current state. Among the -- Series, the IC voltage regulator is one of the most popular models.
