Name: MCP1703AT-3302E/CBVAO
Brand: Microchip Technology
SKU: MCP1703AT-3302E/CBVAO
Availability: InStock

new-10%

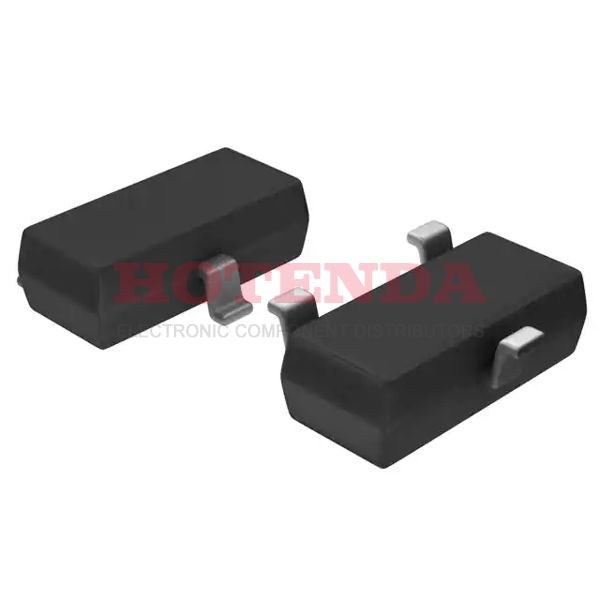

MCP1703AT-3302E/CBVAO

Manufacturer part number:MCP1703AT-3302E/CBVAO

Manufacturer:Microchip Technology

Description:- Fixed 0.95mm MCP1703 PMIC Automotive, AEC-Q100 Series TO-236-3, SC-59, SOT-23-3

Case Package:SOT-23

Datasheet:MCP1703AT-3302E/CBVAO Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Surface Mount	YES
Supplier Device Package	SOT-23A-3
Number of Terminals	3
Package	Tape & Reel (TR)
Base Product Number	MCP1703
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.95mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	MCP1703
JESD-30 Code	R-PDSO-G3
Voltage - Input (Max)	16V
Output Type	Fixed
Output Configuration	Positive
Current - Output	250mA
Control Features	-
Output Voltage 1	3.3V
Input Voltage (Min)	4.025V
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	5μA
Voltage Dropout (Max)	0.65V @ 250mA
PSRR	35dB (100Hz)
Seated Height-Max	1.45 mm
Output Voltage1-Max	3.366V
Output Voltage1-Min	3.234V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.25 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.725 V
Screening Level	AEC-Q100; TS 16949
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Length	2.9mm
Width	1.5 mm
RoHS Status	ROHS3 Compliant

MCP1703AT-3302E/CBVAO Product Details

MCP1703AT-3302E/CBVAO Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-236-3, SC-59, SOT-23-3 case. On the regulater IC chip, there are a total of 3 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 250mA. As an FYI, this IC voltage regulator has the basic part number MCP1703. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. This model is a part of the Automotive, AEC-Q100 Series and is of high quality.
