Name: MCP1702T-2802E/MB
Brand: Microchip Technology
SKU: MCP1702T-2802E/MB
Price: 0.65000 USD
Availability: InStock

new-10%

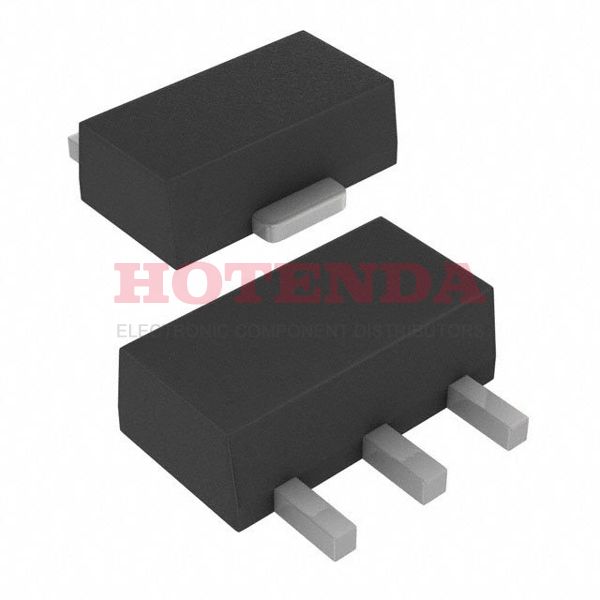

MCP1702T-2802E/MB

Manufacturer part number:MCP1702T-2802E/MB

Manufacturer:Microchip Technology

Description:-- Fixed 1.5 mm MCP1702 PMIC -- Series 3 TO-243AA

Case Package:SOT-23

Datasheet:MCP1702T-2802E/MB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-243AA
Surface Mount	YES
Number of Pins	3
Supplier Device Package	SOT-89-3
Number of Terminals	3
Mounting Style	SMD/SMT
Supplier Package	SOT-89
Junction to Case	100 °C/W
Input Voltage Range	13.2, 2.7 V
Maximum Input Voltage	13.2 V
Junction to Ambient	153.3 °C/W
Mounting	Surface Mount
Qualification	AEC-Q100
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package Shape	RECTANGULAR
Product Status	Active
Mfr	Microchip Technology
Base Product Number	MCP1702
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Dimensions	4.6 x 2.6 x 1.6mm
Operating Temp Range	-40C to 125C
Dropout Voltage@Current (Typ)	0.625@250mA
Package Type	SOT-89
Dropout Voltage@Current (Max)	0.975@250mA
Operating Temperature	-40°C~125°C
Packaging	Cut Tape (CT)
Published	2009
Series	--
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01
Packing Method	TAPE AND REEL
Terminal Position	SINGLE
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	1.5 mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1702
Pin Count	3
JESD-30 Code	R-PSSO-F3
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	13.2V
Output Voltage	2.8V
Output Type	Fixed
Max Output Current	250mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.25 A
Current - Output	250mA
Quiescent Current	5μA
Control Features	--
Accuracy	2 %
Output Voltage 1	2.8V
Input Voltage (Min)	2.7(V)
Voltage - Output (Min/Fixed)	2.8V
Number of Regulators	1
Min Input Voltage	2.7V
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	5µA
Voltage Dropout (Max)	0.975V @ 250mA
PSRR	44dB (100Hz)
Seated Height-Max	1.6 mm
Dropout Voltage	625mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.25V
Power Supply Rejection Ratio (PSRR)	44dB
Output Voltage1-Max	2.884 V
Output Voltage1-Min	2.716 V
Regulator Type	Low Dropout Voltage
Voltage Tolerance-Max	3%
Output Current1-Max	0.25 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.975 V
Screening Level	Extended
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	14.5 V
Adjustability	FIXED
Line Regulation	0.1 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.8 V
Load Regulation	1 %
Input Voltage	13.2(V)
Product Category	LDO Voltage Regulators
Height	1.6002mm
Length	4.5974mm
Width	2.5908mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

MCP1702T-2802E/MB Product Details

MCP1702T-2802E/MB Overview

The package is delivered in a Cut Tape (CT) case. In order to package the IC voltage regulator, a TO-243AA case is used. On the Voltage regulator IC, there are 3 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 250mA. A total of 3 pins are located on this chip, making it the size of a standard chip. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 3 pins may be available. For your information, part number MCP1702 is the basic part number for this voltage regulator IC. As far as the regulator type, it is a Low Dropout Voltage type. There is a TAPE AND REEL way of packing the IC voltage regulators in the box. There is a maximum output current of 250mA for this regulator to meet the operational requirements. It operates in the 5μA Quiescent Current state. The -- Series is a series of products made by D-Link.
