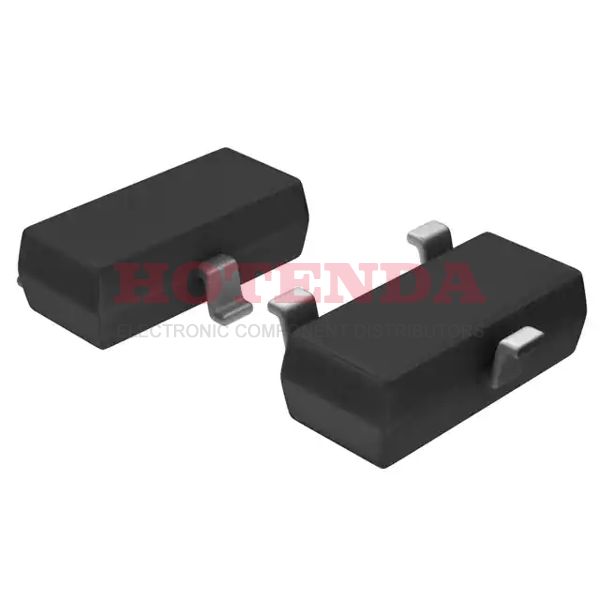

Name: MCP1701T-5002I/CB
Brand: Microchip Technology
SKU: MCP1701T-5002I/CB
Availability: InStock

new-10%

MCP1701T-5002I/CB

Manufacturer part number:MCP1701T-5002I/CB

Manufacturer:Microchip Technology

Description:-- Fixed 0.96mm MCP1701 PMIC -- Series 3 TO-236-3, SC-59, SOT-23-3

Case Package:SOT-23

Datasheet:MCP1701T-5002I/CB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Surface Mount	YES
Number of Pins	3
Supplier Device Package	SOT-23A-3
Number of Terminals	3
Package	Tape & Reel (TR);Cut Tape (CT);
Base Product Number	MCP1701
Mfr	Microchip Technology
Product Status	Obsolete
RoHS	Compliant
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2005
Series	--
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
HTS Code	8542.39.00.01
Packing Method	TAPE AND REEL
Max Power Dissipation	150mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.96mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1701
Pin Count	3
JESD-30 Code	R-PDSO-G3
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	10V
Output Voltage	5V
Output Type	Fixed
Output Configuration	Positive
Output Current	250 mA
Current - Output	250mA
Control Features	--
Output Voltage 1	5V
Input Voltage (Min)	6V
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Protection Features	Short Circuit
Current - Quiescent (Iq)	3μA
Voltage Dropout (Max)	0.63V @ 200mA
Max Input Voltage	10 V
PSRR	--
Seated Height-Max	1.3 mm
Dropout Voltage	400mV
Dropout Voltage1-Nom	0.4V
Output Voltage1-Max	5.1 V
Output Voltage1-Min	4.9 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	0.25 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.63 V
Input Voltage Absolute-Max	12 V
Input Bias Current	2μA
Adjustability	FIXED
Output Voltage1-Nom	5 V
Length	2.9mm
Width	1.6 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MCP1701T-5002I/CB Product Details

MCP1701T-5002I/CB Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-236-3, SC-59, SOT-23-3 case. On the regulater IC chip, there are a total of 3 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~85°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 250mA. A total of 3 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 3 pins on the chip. As an FYI, this IC voltage regulator has the basic part number MCP1701. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. As you can see from the picture, the regulator IC is packed in a certain way. This model is a part of the -- Series and is of high quality. If the temperature is below 85 °C, it is recommended that you utilize this feature. It is recommended that the chip be operated at a temperature no lower than -40 °C operating temperature.
