Name: MCP1700T-4502E/MB
Brand: Microchip Technology
SKU: MCP1700T-4502E/MB
Price: 0.50000 USD
Availability: InStock

new-10%

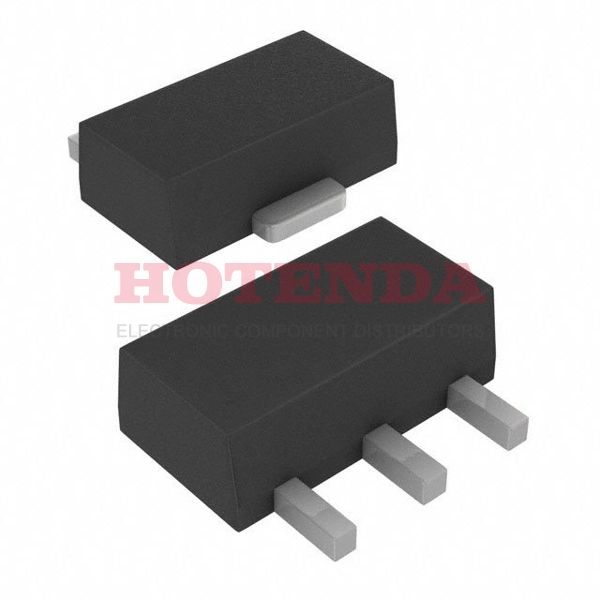

MCP1700T-4502E/MB

Manufacturer part number:MCP1700T-4502E/MB

Manufacturer:Microchip Technology

Description:-- Fixed 1.5 mm MCP1700 PMIC -- Series 4 TO-243AA

Case Package:SOT-23

Datasheet:MCP1700T-4502E/MB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Mount	Surface Mount
Surface Mount	YES
Number of Pins	3
Supplier Device Package	SOT-89-3
Number of Terminals	3
Mounting Style	SMD/SMT
Supplier Package	SOT-89
Input Voltage Range	6, 2.3 V
Maximum Input Voltage	6 V
Junction to Ambient	52 °C/W
Mounting	Surface Mount
RoHS	Compliant
Qualification	AEC-Q100
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1700
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
Series	--
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Terminal Position	SINGLE
Terminal Form	FLAT
Number of Functions	1
Terminal Pitch	1.5 mm
Reach Compliance Code	compliant
Base Part Number	MCP1700
Pin Count	4
JESD-30 Code	R-PSSO-F3
Function	LDO
Number of Outputs	1
Voltage - Input (Max)	6V
Output Voltage	4.5V
Output Type	Fixed
Max Output Current	250mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.25 A
Current - Output	250mA
Quiescent Current	4μA
Control Features	--
Accuracy	2 %
Output Voltage 1	4.5V
Voltage - Output (Min/Fixed)	4.5V
Number of Regulators	1
Min Input Voltage	2.3V
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	4μA
Voltage Dropout (Max)	0.35V @ 250mA
Max Input Voltage	6.5 V
PSRR	44dB (100Hz)
Seated Height-Max	1.6 mm
Dropout Voltage	178mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.178V
Output Voltage1-Max	4.635 V
Output Voltage1-Min	4.365 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.35 V
Screening Level	Extended
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6.5V
Adjustability	FIXED
Line Regulation	0.75 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	4.5 V
Load Regulation	1 %
Product Category	LDO Voltage Regulators
Width	2.5mm
Length	4.5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

MCP1700T-4502E/MB Product Details

MCP1700T-4502E/MB Overview

An Tape & Reel (TR) case is included with the delivery. There is a TO-243AA case with the integrated voltage regulator. There are 3 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 250mAmp current output on this voltage regulator IC. It has a total of 4 pins on IC voltage regulator. In order to ensure prompt, adequate, and prompt performance, this regulator has 1 outputs in total. In terms of its dropout voltage, it is 10 volts. There are 3 pins on the chip. It is MCP1700 for this regulator, just for your information. In this instance, we are dealing with a typical PMIC - Power Management ICs-shaped component. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. In order to pack the regulator, the method is TR. In order to meet the operating requirements of the regulator, its maximal output current reaches 250mA. It operates in the 4μA Quiescent Current state. This regulator IC is a part of the -- Series. Utilize the regulator IC when the temperature is below 125 °C. It is recommended that the chip be operated at a temperature no lower than -40 °C operating temperature.
