Name: MCP1700T-1802E/MAY
Brand: Microchip Technology
SKU: MCP1700T-1802E/MAY
Price: 0.53000 USD
Availability: InStock

new-10%

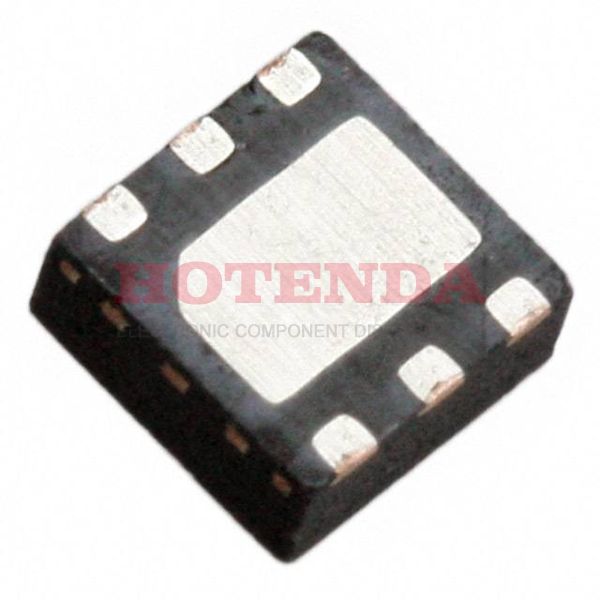

MCP1700T-1802E/MAY

Manufacturer part number:MCP1700T-1802E/MAY

Manufacturer:Microchip Technology

Description:-- Fixed 0.65 mm MCP1700 PMIC -- Series 6 6-VDFN Exposed Pad

Case Package:SOT-23

Datasheet:MCP1700T-1802E/MAY Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Surface Mount	YES
Number of Pins	6
Supplier Device Package	6-DFN
Weight	21.092045mg
Number of Terminals	6
Mounting Style	SMD/SMT
Supplier Package	DFN
Input Voltage Range	2.3, 6 V
Maximum Input Voltage	6 V
Junction to Ambient	91 °C/W
Mounting	Surface Mount
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1700
Mfr	Microchip Technology
Product Status	Active
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Qualification	AEC-Q100
RoHS	Compliant
Package Shape	SQUARE
Brand	Microchip Technology
Manufacturer	Microchip
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
Published	2007
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Packing Method	TR
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	MCP1700
Pin Count	6
JESD-30 Code	R-PDSO-N6
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Voltage	1.8V
Output Type	Fixed
Max Output Current	200mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.2 A
Current - Output	200mA
Quiescent Current	4μA
Control Features	--
Output Voltage 1	1.8V
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Min Input Voltage	2.3V
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	4μA
Voltage Dropout (Max)	0.35V @ 200mA
Max Input Voltage	6 V
PSRR	44dB (100Hz)
Seated Height-Max	0.9 mm
Dropout Voltage	150mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.15V
Output Voltage1-Max	1.854 V
Output Voltage1-Min	1.746 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.2 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.35 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6.5 V
Adjustability	FIXED
Line Regulation	1 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Load Regulation	1.5 %
Product Category	LDO Voltage Regulators
Length	2mm
Width	2mm
Height Seated (Max)	0.9mm
RoHS Status	ROHS3 Compliant
Radiation Hardening	No

MCP1700T-1802E/MAY Product Details

MCP1700T-1802E/MAY Overview
