Name: DSPIC33FJ16GS404-50I/TL
Brand: Microchip Technology
SKU: DSPIC33FJ16GS404-50I/TL
Availability: InStock

new-10%

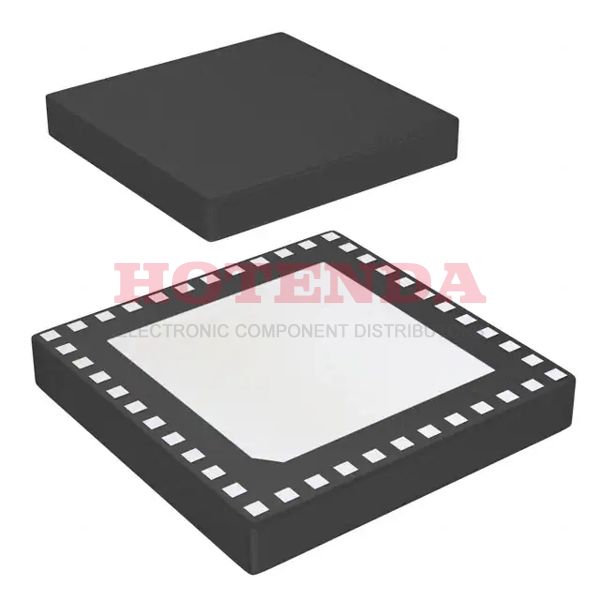

DSPIC33FJ16GS404-50I/TL

Manufacturer part number:DSPIC33FJ16GS404-50I/TL

Manufacturer:Microchip Technology

Description:16KB 16K x 8 FLASH dsPIC 16-Bit Microcontroller dsPIC™ 33F Series DSPIC33FJ16GS404 44 Pin 50MHz 3.3V 44-VFTLA Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33FJ16GS404-50I/TL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mounting Type	Surface Mount
Package / Case	44-VFTLA Exposed Pad
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-VTLA (6x6)
Number of Terminals	44
Data Converters	A/D 8x10b
Package	Tube
Base Product Number	DSPIC33FJ16GS404
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	35
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	dsPIC™ 33F
Published	2012
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code	8542.31.00.01
Terminal Position	BOTTOM
Terminal Form	BUTT
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	50MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33FJ16GS404
JESD-30 Code	S-XBGA-N44
Operating Supply Voltage	3.3V
Temperature Grade	INDUSTRIAL
Interface	I2C, IrDA, LIN, SPI, UART, USART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	35
Speed	40 MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	16KB 16K x 8
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	160 mA
Bit Size	16
Data Converter	A/D 8x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
Number of Timers/Counters	3
EEPROM Size	--
On Chip Program ROM Width	8
Boundary Scan	YES
Low Power Mode	YES
Screening Level	TS 16949
Format	FIXED POINT
Integrated Cache	NO
RAM (words)	2048
Number of Timers	3
ROM Programmability	FLASH
Number of External Interrupts	3
Barrel Shifter	YES
Internal Bus Architecture	MULTIPLE
On Chip Data RAM Width	8
Length	6mm
Height Seated (Max)	1mm
Width	6 mm
RoHS Status	ROHS3 Compliant

DSPIC33FJ16GS404-50I/TL Product Details

DSPIC33FJ16GS404-50I/TL Overview

This Microcontroller comes in a 44-VFTLA Exposed Pad package. This Microcontroller has 35 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 16-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in dsPIC™ 33F Series. The size of the program memory of Microcontroller is 16KB 16K x 8. MCU is powered by dsPIC Core Processor. The device belongs to DIGITAL SIGNAL PROCESSOR, OTHER uPs/uCs/Peripheral ICs Type. The MCU has a number of 44 terminals. Microcontroller comes with 16 bit size. The component always operates in 3.3V supply voltage. MCU chip has NO DMA channels. The part owns 16kB memory size. You can find alternatives through the base part number DSPIC33FJ16GS404. MCU's frequency is 50MHz. The device works in YES PWM channels. The pin number of the component remains 44. It has 3 timers/counters. 3 external interrupts are included in the eletrical part. There are a series of 3 timers in the Microcontroller chip.
