Name: DSPIC33FJ128GP804-H/ML
Brand: Microchip Technology
SKU: DSPIC33FJ128GP804-H/ML
Availability: InStock

new-10%

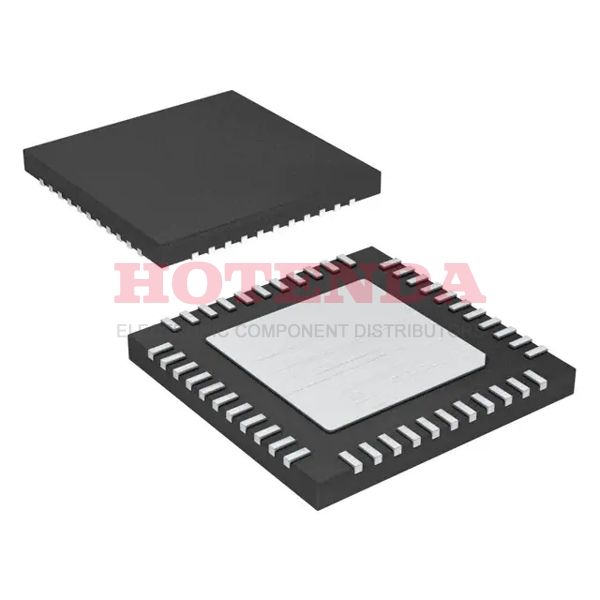

DSPIC33FJ128GP804-H/ML

Manufacturer part number:DSPIC33FJ128GP804-H/ML

Manufacturer:Microchip Technology

Description:128KB 128K x 8 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33F Series DSPIC33FJ128GP804 3.3V 44-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33FJ128GP804-H/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Package / Case	44-VQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	44-QFN (8x8)
Number of Terminals	44
Data Converters	A/D 13x10b/12b, D/A 2x16b
Package	Tube
Base Product Number	DSPIC33FJ128GP804
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	35
Operating Temperature	-40°C~150°C TA
Packaging	Tube
Series	Automotive, AEC-Q100, dsPIC™ 33F
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	44
ECCN Code	3A001.A.2.A
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33FJ128GP804
Pin Count	44
JESD-30 Code	S-PQCC-N44
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3 V
Temperature Grade	AUTOMOTIVE
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	35
Speed	40 MIPs
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DCI, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	128KB 128K x 8
Connectivity	CANbus, I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	45 mA
Bit Size	16
Data Converter	A/D 13x10b/12b; D/A 2x16b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1 mm
Number of Timers/Counters	5
EEPROM Size	--
Max Frequency	40MHz
Format	FLOATING-POINT
RAM (words)	8192
ROM Programmability	FLASH
Length	8mm
Height Seated (Max)	1mm
Width	8 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

DSPIC33FJ128GP804-H/ML Product Details

DSPIC33FJ128GP804-H/ML Overview

44-VQFN Exposed Pad-packages are available. There are 35 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 16-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~150°C TA for this Microcontroller. An electrical component of this type belongs to the Automotive, AEC-Q100, dsPIC™ 33F series. This program memory has a size of 128KB 128K x 8, which indicates what the size of the program memory is. dsPIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 44 terminations on MCU chip. You get a 16-bit size. This Microcontroller chip is powered by 3.3V volts. There are YES DMA channels on this Microcontroller chip. The part has a memory size of 128kB. The base part number DSPIC33FJ128GP804 provides alternatives. Using the PWM channel YES, the device works with the motor. Using the timer/counter system, it has 5 timers/counters. It has 44 pins in total.
