Name: DSPIC33EV256GM102T-I/MM
Brand: Microchip Technology
SKU: DSPIC33EV256GM102T-I/MM
Availability: InStock

new-10%

DSPIC33EV256GM102T-I/MM

Manufacturer part number:DSPIC33EV256GM102T-I/MM

Manufacturer:Microchip Technology

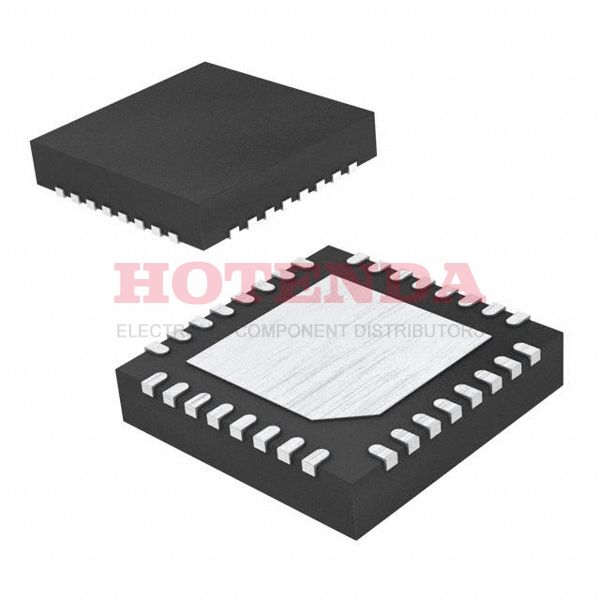

Description:256KB 85.5K x 24 FLASH dsPIC 16-Bit Microcontroller dsPIC™ 33EV Series DSPIC33EV256GM1 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EV256GM102T-I/MM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	28-QFN-S (6x6)
Number of Terminals	28
Data Converters	A/D 11x10/12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	DSPIC33EV256GM102
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	21
Operating Temperature	-40°C~85°C TA
Packaging	Cut Tape (CT)
Series	dsPIC™ 33EV
Published	2016
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Additional Feature	A/D CONVERTERS IS ALSO AVAILABLE IN 11-CH 10-BIT, OPERATES UPTO 70MIPS
Subcategory	Digital Signal Processors
Technology	CMOS
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Base Part Number	DSPIC33EV256GM1
JESD-30 Code	S-PQCC-N28
Qualification Status	Not Qualified
Power Supplies	5 V
Temperature Grade	INDUSTRIAL
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	21
Speed	70 MIPs
RAM Size	16K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	256KB 85.5K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	31 mA
Bit Size	16
Data Converter	A/D 11x10/12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
ROM (words)	262144
Core Architecture	dsPIC
EEPROM Size	--
On Chip Program ROM Width	8
Screening Level	TS 16949
Format	FIXED POINT
RAM (words)	8192
RAM (bytes)	16384
ROM Programmability	FLASH
Width	6 mm
Length	6 mm
RoHS Status	ROHS3 Compliant

DSPIC33EV256GM102T-I/MM Product Details

DSPIC33EV256GM102T-I/MM Overview

The package has a 28-VQFN Exposed Pad shape. With 21 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 16-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~85°C TA range are measured by this Microcontroller. The dsPIC™ 33EV series is comprised of this electrical component. The electronic part has a program memory size of 256KB 85.5K x 24. There's a dsPIC Core Processor inside. The IC chip fits into the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 16-bits are the size of the data that comes with MCU. In addition to that, MCU chip has YES DMA channels. Its memory size is 256kB. It is possible to find alternatives to the base part number DSPIC33EV256GM1 by using the part number search tool. There are a total of YES channels in the device. The equipment on this page features FLASH memory technology. This device features a dsPIC core architecture. As an example, there is a feature called A/D CONVERTERS IS ALSO AVAILABLE IN 11-CH 10-BIT, OPERATES UPTO 70MIPS to name only a few.
