Name: DSPIC33EP512MC502T-I/MM
Brand: Microchip Technology
SKU: DSPIC33EP512MC502T-I/MM
Availability: InStock

new-10%

DSPIC33EP512MC502T-I/MM

Manufacturer part number:DSPIC33EP512MC502T-I/MM

Manufacturer:Microchip Technology

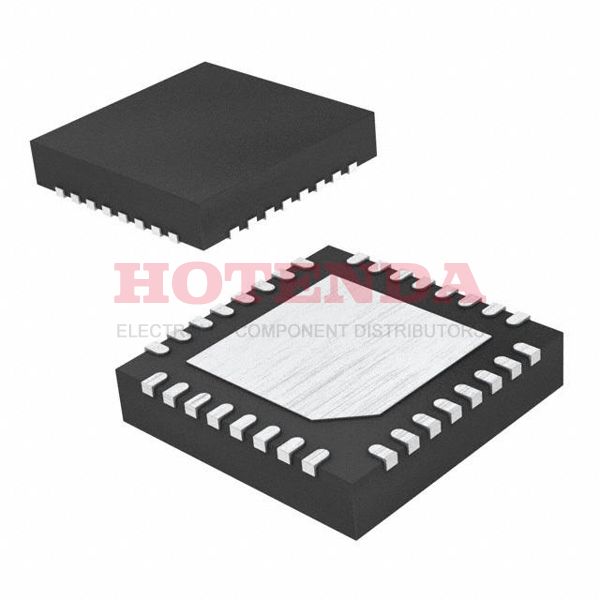

Description:512KB 170K x 24 FLASH dsPIC 16-Bit Microcontroller dsPIC™ 33EP Series DSPIC33EP512MC502 28 Pin 70MHz 3.3V 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EP512MC502T-I/MM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	28
Supplier Device Package	28-QFN-S (6x6)
Number of Terminals	28
Data Converters	A/D 6x10b/12b
Package	Tape & Reel (TR)
Base Product Number	DSPIC33EP512MC502
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	21
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	dsPIC™ 33EP
Published	2013
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	3A001.A.3
Terminal Finish	Matte Tin (Sn) - annealed
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Frequency	70MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33EP512MC502
JESD-30 Code	S-PQCC-N28
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	3V
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Memory Size	512kB
Oscillator Type	Internal
Number of I/O	21
Speed	70 MIPs
RAM Size	24K x 16
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	512KB 170K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, QEI, SPI, UART/USART
Supply Current-Max	150 mA
Bit Size	16
Data Converter	A/D 6x10b/12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
Number of Timers/Counters	12
ROM (words)	174762
EEPROM Size	--
On Chip Program ROM Width	24
Format	FLOATING-POINT
RAM (words)	24576
RAM (bytes)	49152
ROM Programmability	FLASH
Length	6mm
Height Seated (Max)	1mm
Width	6 mm
RoHS Status	ROHS3 Compliant

DSPIC33EP512MC502T-I/MM Product Details

DSPIC33EP512MC502T-I/MM Description

DSPIC33EP512MC502T-I/MM, a Microchip product that Utmel Electronics distributes. It is under the DSP (Digital Signal Processors & Controllers) group.

It is used in a variety of industries, such as industrial appliances. Enterprise computing and data center systems Tablets for personal electronics.

The primary specifications for this section are as follows: 16 B Dsc, 512 Kb F, 48 Kb Ram, 60 Mh, 28 P, Mcpwm, Qei, O A, C, Ptg, Can 28 Qfn-S 6 6 0.9 T/R.

It is also environmentally friendly and RoHS compliant (lead free).
