Name: DSPIC33EP512GP806T-E/MR
Brand: Microchip Technology
SKU: DSPIC33EP512GP806T-E/MR
Availability: InStock

new-10%

DSPIC33EP512GP806T-E/MR

Manufacturer part number:DSPIC33EP512GP806T-E/MR

Manufacturer:Microchip Technology

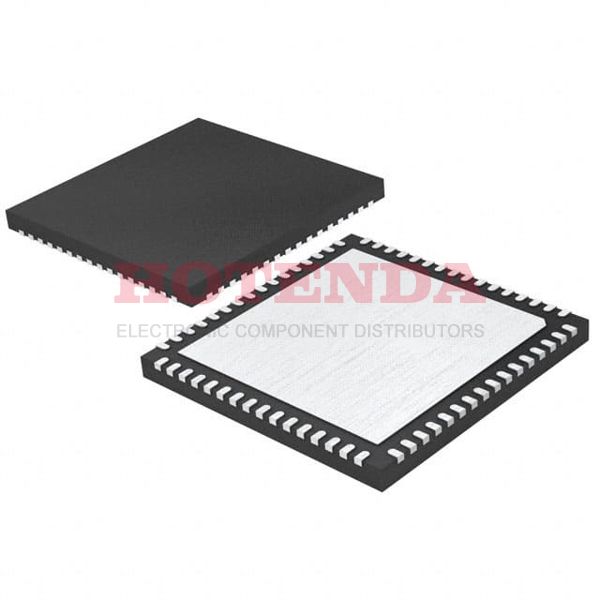

Description:512KB 170K x 24 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33EP Series DSPIC33EP512GP806 64 Pin 60MHz 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EP512GP806T-E/MR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-QFN (9x9)
Number of Terminals	64
Data Converters	A/D 24x10b/12b
Package	Tape & Reel (TR)
Base Product Number	DSPIC33EP512GP806
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	53
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, dsPIC™ 33EP
Published	2006
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Frequency	60MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33EP512GP806
JESD-30 Code	S-PQCC-N64
Operating Supply Voltage	3.3V
Temperature Grade	AUTOMOTIVE
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Memory Size	512kB
Oscillator Type	Internal
Number of I/O	53
Speed	60 MIPs
RAM Size	24K x 16
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	512KB 170K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	320 mA
Bit Size	16
Data Converter	A/D 24x10/12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
Number of Timers/Counters	9
ROM (words)	548864
EEPROM Size	--
On Chip Program ROM Width	8
CPU Family	DSPIC33
Boundary Scan	YES
Low Power Mode	YES
Format	FLOATING-POINT
Integrated Cache	NO
RAM (bytes)	53248
Number of Timers	9
ROM Programmability	FLASH
Number of External Interrupts	5
On Chip Data RAM Width	8
Number of DMA Channels	15
Width	9 mm
Length	9 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

DSPIC33EP512GP806T-E/MR Product Details

DSPIC33EP512GP806T-E/MR Overview

The package has a 64-VFQFN Exposed Pad shape. With 53 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 16-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~125°C TA range are measured by this Microcontroller. The Automotive, AEC-Q100, dsPIC™ 33EP series is comprised of this electrical component. The electronic part has a program memory size of 512KB 170K x 24. There's a dsPIC Core Processor inside. The IC chip fits into the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 16-bits are the size of the data that comes with MCU. In addition to that, MCU chip has YES DMA channels. Its memory size is 512kB. It is possible to find alternatives to the base part number DSPIC33EP512GP806 by using the part number search tool. An effective performance can be achieved at a frequency of 60MHz. There are a total of YES channels in the device. It is possible to access the 64 pins on the chip. In total, it has 9 timers and counters in it. There are several CPUs that are embedded in the device, including the the DSPIC33 CPU. As part of the part, there are 5 external interrupts that can be used. A IC chip with 9 bits has 9 bits in total.
