Name: DSPIC33EP512GP504-H/TL
Brand: Microchip Technology
SKU: DSPIC33EP512GP504-H/TL
Availability: InStock

new-10%

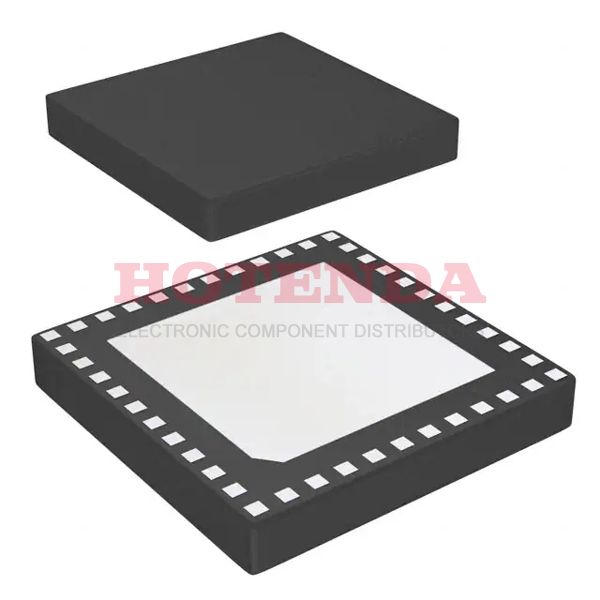

DSPIC33EP512GP504-H/TL

Manufacturer part number:DSPIC33EP512GP504-H/TL

Manufacturer:Microchip Technology

Description:512KB 170K x 24 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33EP Series DSPIC33EP512GP504 44 Pin 3.3V 44-VFTLA Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EP512GP504-H/TL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	44-VFTLA Exposed Pad
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-VTLA (6x6)
Number of Terminals	44
Data Converters	A/D 9x10b/12b
Package	Tube
Base Product Number	DSPIC33EP512GP504
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~150°C TA
Packaging	Tube
Series	Automotive, AEC-Q100, dsPIC™ 33EP
Published	2013
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Terminal Position	BOTTOM
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Base Part Number	DSPIC33EP512GP504
JESD-30 Code	S-XBGA-N44
Operating Supply Voltage	3.6V
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Memory Size	512kB
Oscillator Type	Internal
Number of I/O	35
Nominal Supply Current	30μA
Speed	60 MIPs
RAM Size	24K x 16
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency	60MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	512KB 170K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	300 mA
Bit Size	16
Data Converter	A/D 9x10b/12b
Data Bus Width	16b
Seated Height-Max	1 mm
Number of Timers/Counters	12
EEPROM Size	--
On Chip Program ROM Width	8
Boundary Scan	YES
Low Power Mode	NO
Screening Level	TS 16949
Format	FLOATING-POINT
Integrated Cache	NO
RAM (words)	4000
Number of Timers	5
ROM Programmability	FLASH
Number of External Interrupts	3
Barrel Shifter	YES
Internal Bus Architecture	MULTIPLE
On Chip Data RAM Width	8
Number of DMA Channels	4
Length	6mm
Height Seated (Max)	1mm
Width	6 mm
RoHS Status	ROHS3 Compliant

DSPIC33EP512GP504-H/TL Product Details

DSPIC33EP512GP504-H/TL Overview

In a 44-VFTLA Exposed Pad package, the MCU is available. 35 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 16-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~150°C TA that is operated by this Microcontroller. Automotive, AEC-Q100, dsPIC™ 33EP series components make up this electrical component. 512KB 170K x 24 is the size of its program memory. A dsPIC Core processor is used to power the device. This device falls under the DIGITAL SIGNAL PROCESSOR, OTHER uPs/uCs/Peripheral ICs category. 44 is the number of terminations on the IC chip that are present. This part works in a 16-bit manner. There is a 3.3V volt supply output on the chip. 512kB is the memory size of the part. The base part number DSPIC33EP512GP504 can be used to find alternatives. Located on the chip are 44 pins. The clock has 12 timers or counters on it. A 60MHz-clock frequency is used to operate it. This part contains 3 external interrupts which provide a high level of flexibility. It is possible to have 5 bits in a IC chip.
