Name: DSPIC33EP32GS502-I/MX
Brand: Microchip Technology
SKU: DSPIC33EP32GS502-I/MX
Availability: InStock

new-10%

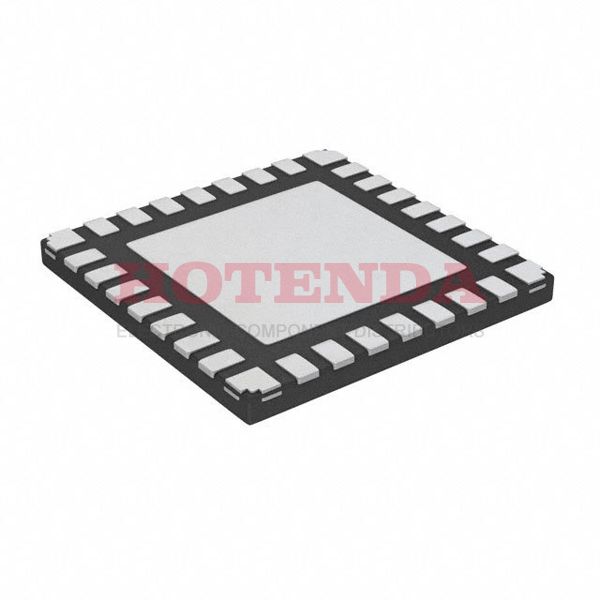

DSPIC33EP32GS502-I/MX

Manufacturer part number:DSPIC33EP32GS502-I/MX

Manufacturer:Microchip Technology

Description:32KB 32K x 8 FLASH dsPIC 16-Bit Microcontroller dsPIC™ 33EP Series DSPIC33EP32GS502 3.3V 28-UQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EP32GS502-I/MX Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	28-UQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	28-UQFN (6x6)
Data Converters	A/D 12x12b, D/A 1x12b
Package	Tube
Base Product Number	DSPIC33EP32GS502
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	dsPIC™ 33EP
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	3A991.A.2
Additional Feature	5-CH 12-BIT (S AND H) FOR ADC CONVERTER
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Base Part Number	DSPIC33EP32GS502
JESD-30 Code	S-PQCC-N28
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	3V
Interface	I2C, IrDA, LIN, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	21
Speed	70 MIPs
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency	60MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	32KB 32K x 8
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Bit Size	16
Data Converter	A/D 12x12b; D/A 1x12b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	YES
ROM (words)	32768
EEPROM Size	--
On Chip Program ROM Width	8
Screening Level	TS 16949
Length	6mm
Height Seated (Max)	0.55mm
Width	6mm
RoHS Status	ROHS3 Compliant

DSPIC33EP32GS502-I/MX Product Details

DSPIC33EP32GS502-I/MX Overview

28-UQFN Exposed Pad-packages are available. There are 21 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 16-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the dsPIC™ 33EP series. This program memory has a size of 32KB 32K x 8, which indicates what the size of the program memory is. dsPIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 28 terminations on MCU chip. You get a 16-bit size. This Microcontroller chip is powered by 3.3V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 32kB. The base part number DSPIC33EP32GS502 provides alternatives. Using the PWM channel YES, the device works with the motor. It's got a 60MHz clock. Some of these features include 5-CH 12-BIT (S AND H) FOR ADC CONVERTER, for example, as one example.
