Name: DSPIC33EP32GP504-H/ML
Brand: Microchip Technology
SKU: DSPIC33EP32GP504-H/ML
Availability: InStock

new-10%

DSPIC33EP32GP504-H/ML

Manufacturer part number:DSPIC33EP32GP504-H/ML

Manufacturer:Microchip Technology

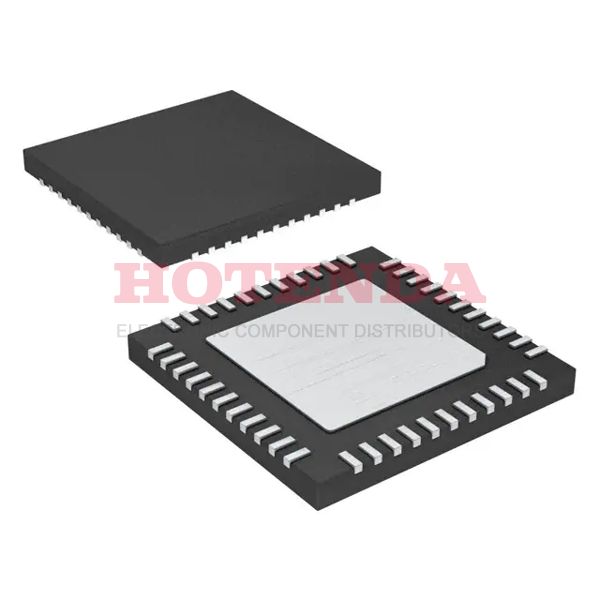

Description:32KB 10.7K x 24 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33EP Series DSPIC33EP32GP504 44 Pin 3.3V 44-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EP32GP504-H/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	44-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-QFN (8x8)
Number of Terminals	44
Data Converters	A/D 9x10b/12b
Package	Tube
Base Product Number	DSPIC33EP32GP504
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~150°C TA
Packaging	Tube
Series	Automotive, AEC-Q100, dsPIC™ 33EP
Published	2012
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	44
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Base Part Number	DSPIC33EP32GP504
JESD-30 Code	S-PQCC-N44
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	35
Speed	60 MIPs
RAM Size	2K x 16
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	32KB 10.7K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	300 mA
Bit Size	16
Data Converter	A/D 9x10b/12b
Data Bus Width	16b
Seated Height-Max	1 mm
EEPROM Size	--
On Chip Program ROM Width	8
Max Frequency	60MHz
Boundary Scan	YES
Low Power Mode	NO
Screening Level	TS 16949
Format	FLOATING-POINT
Integrated Cache	NO
RAM (words)	4000
Number of Timers	5
ROM Programmability	FLASH
Number of External Interrupts	3
Barrel Shifter	YES
Internal Bus Architecture	MULTIPLE
On Chip Data RAM Width	8
Number of DMA Channels	4
Length	8mm
Height Seated (Max)	1mm
Width	8 mm
RoHS Status	ROHS3 Compliant

DSPIC33EP32GP504-H/ML Product Details

DSPIC33EP32GP504-H/ML Overview

A 44-VQFN Exposed Pad package is included. In total, it has 35 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 16-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~150°C TA. Automotive, AEC-Q100, dsPIC™ 33EP series components belong to this electrical component. Its program memory size is 32KB 10.7K x 24. There is a dsPIC Core Processor inside MCU that provides this device with its power. DIGITAL SIGNAL PROCESSOR, OTHER uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 44 terminations in total. The part works on a 16-bit basis. An output voltage of 3.3V volts is available for this Microcontroller chip. 32kB memory size belongs to the part. DSPIC33EP32GP504 is the base part number that you can use to find alternatives. On the chip, there are 44 pins that are accessible. MCU chip is included in the part that 3 external interrupts are available. 5 bits are found on a MCU chip.
