Name: DSPIC33EP256GM710-E/PF
Brand: Microchip Technology
SKU: DSPIC33EP256GM710-E/PF
Availability: InStock

new-10%

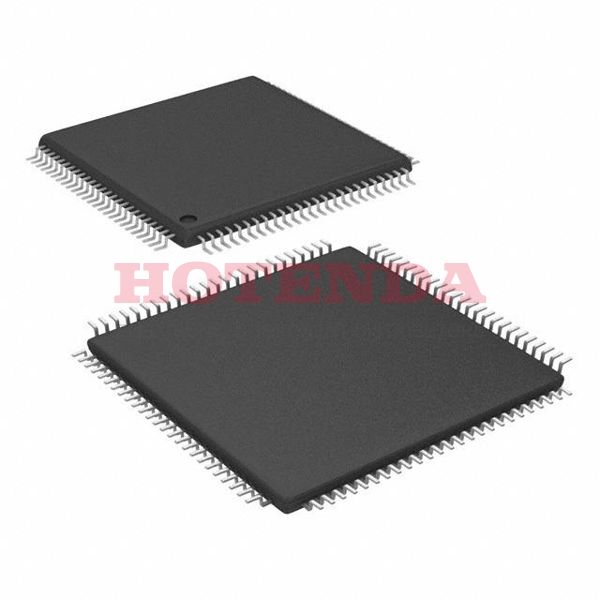

DSPIC33EP256GM710-E/PF

Manufacturer part number:DSPIC33EP256GM710-E/PF

Manufacturer:Microchip Technology

Description:256KB 85.5K x 24 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33EP Series DSPIC33EP256GM710 100 Pin 60MHz 3.3V 100-TQFP

Case Package:SOT-23

Datasheet:DSPIC33EP256GM710-E/PF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TQFP
Surface Mount	YES
Number of Pins	100
Supplier Device Package	100-TQFP (14x14)
Number of Terminals	100
Interfaces	CAN/I2C/SMBus/SPI/UA
Data Converters	A/D 49x10b/12b
Package	Tray
Base Product Number	DSPIC33EP256GM710
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	85
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Published	2013
Series	Automotive, AEC-Q100, dsPIC™ 33EP
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	100
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	60 MIPS, ADC ALSO SUPPORTS 10-BIT RESOLUTION, AEC-Q100 PLANNED
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	60MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33EP256GM710
JESD-30 Code	S-PQFP-G100
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3 V
Temperature Grade	AUTOMOTIVE
Interface	I2C, SPI, UART
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	85
Speed	60 MIPs
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	256KB 85.5K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, QEI, SPI, UART/USART
Supply Current-Max	50 mA
Bit Size	16
Data Converter	A/D 49x10b/12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	13
ROM (words)	262144
EEPROM Size	--
On Chip Program ROM Width	8
Screening Level	TS 16949
Format	FLOATING-POINT
RAM (words)	16384
RAM (bytes)	32768
ROM Programmability	FLASH
Length	14mm
Width	14mm
Height Seated (Max)	1.2mm
RoHS Status	ROHS3 Compliant

DSPIC33EP256GM710-E/PF Product Details

DSPIC33EP256GM710-E/PF Overview

In a 100-TQFP package, the MCU is available. 85 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 16-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~125°C TA that is operated by this Microcontroller. Automotive, AEC-Q100, dsPIC™ 33EP series components make up this electrical component. 256KB 85.5K x 24 is the size of its program memory. A dsPIC Core processor is used to power the device. This device falls under the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 100 is the number of terminations on the IC chip that are present. This part works in a 16-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number YES. 256kB is the memory size of the part. The base part number DSPIC33EP256GM710 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 60MHz. The device works in YES PWM channels. Located on the chip are 100 pins. The clock has 13 timers or counters on it. I would like to mention a few additional features such as 60 MIPS, ADC ALSO SUPPORTS 10-BIT RESOLUTION, AEC-Q100 PLANNED in order to name a few.
