Name: DSPIC33EP128MC504-I/TL
Brand: Microchip Technology
SKU: DSPIC33EP128MC504-I/TL
Availability: InStock

new-10%

DSPIC33EP128MC504-I/TL

Manufacturer part number:DSPIC33EP128MC504-I/TL

Manufacturer:Microchip Technology

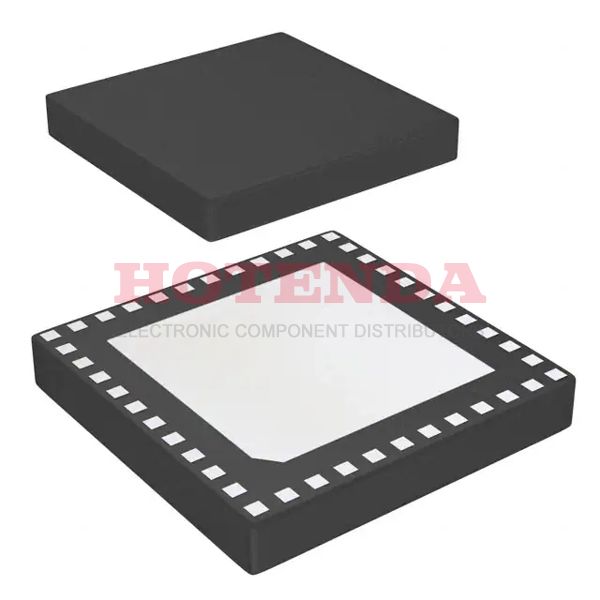

Description:128KB 43K x 24 FLASH dsPIC 16-Bit Microcontroller dsPIC™ 33EP Series DSPIC33EP128MC504 44 Pin 70MHz 3.3V 44-VFTLA Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EP128MC504-I/TL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-VFTLA Exposed Pad
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-VTLA (6x6)
Number of Terminals	44
Data Converters	A/D 9x10b/12b
Package	Tube
Base Product Number	DSPIC33EP128MC504
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	35
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	dsPIC™ 33EP
Published	2012
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
ECCN Code	3A001.A.3
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Frequency	70MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33EP128MC504
Pin Count	44
JESD-30 Code	S-XQCC-N44
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3 V
Temperature Grade	INDUSTRIAL
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	35
Speed	70 MIPs
RAM Size	8K x 16
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	128KB 43K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, QEI, SPI, UART/USART
Supply Current-Max	150 mA
Bit Size	16
Data Converter	A/D 9x10b/12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
Number of Timers/Counters	5
ROM (words)	43690
EEPROM Size	--
On Chip Program ROM Width	24
Format	FLOATING-POINT
RAM (words)	8192
RAM (bytes)	16384
ROM Programmability	FLASH
Length	6mm
Height Seated (Max)	1mm
Width	6 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

DSPIC33EP128MC504-I/TL Product Details

DSPIC33EP128MC504-I/TL Overview

The package has a 44-VFTLA Exposed Pad shape. With 35 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 16-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~85°C TA range are measured by this Microcontroller. The dsPIC™ 33EP series is comprised of this electrical component. The electronic part has a program memory size of 128KB 43K x 24. There's a dsPIC Core Processor inside. The IC chip fits into the MICROCONTROLLER uPs/uCs/Peripheral ICs category. There are 44 terminations on the IC chip. 16-bits are the size of the data that comes with MCU. A 3.3V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has YES DMA channels. Its memory size is 128kB. It is possible to find alternatives to the base part number DSPIC33EP128MC504 by using the part number search tool. An effective performance can be achieved at a frequency of 70MHz. There are a total of YES channels in the device. It is possible to access the 44 pins on the chip. In total, it has 5 timers and counters in it. A total of 44 pins are included in the package.
