Name: DSPIC33CK256MP206-E/MR
Brand: Microchip Technology
SKU: DSPIC33CK256MP206-E/MR
Price: 5.21000 USD
Availability: InStock

new-10%

DSPIC33CK256MP206-E/MR

Manufacturer part number:DSPIC33CK256MP206-E/MR

Manufacturer:Microchip Technology

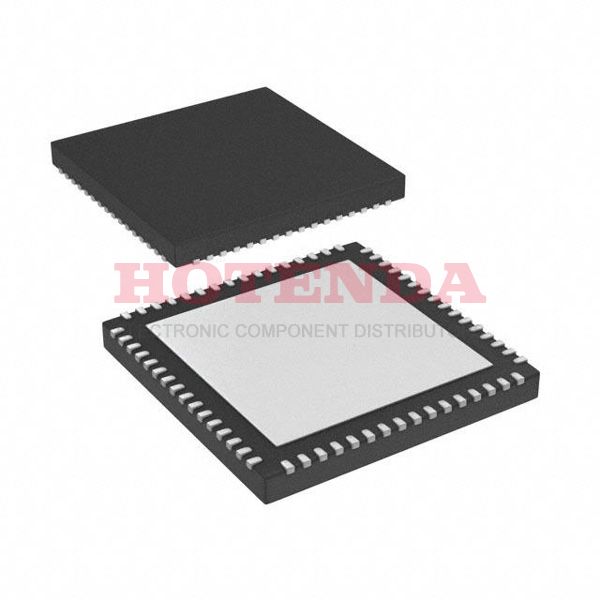

Description:256KB 256K x 8 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33CK Series DSPIC33CK256MP206 3.3V 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33CK256MP206-E/MR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	64-QFN (9x9)
Number of Terminals	64
Mounting Style	SMD/SMT
Data Converters	A/D 20x12b, D/A 3x12b
Package	Tube
Base Product Number	DSPIC33CK256MP206
Mfr	Microchip Technology
Product Status	Active
Qualification	AEC-Q100
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Interface Type	CAN, I2C, I2S, SPI, UART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	dsPIC
RoHS	Details
Package Shape	SQUARE
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	Automotive, AEC-Q100, dsPIC™ 33CK
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Subcategory	Embedded Processors & Controllers
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Base Part Number	DSPIC33CK256MP206
JESD-30 Code	S-PQCC-N64
Operating Supply Voltage	3 V to 3.6 V
Supply Voltage-Max (Vsup)	3.6V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	3V
Oscillator Type	Internal
Number of I/O	53
Speed	100MHz
RAM Size	24K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Clock Frequency	64MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	256KB 256K x 8
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Bit Size	16
Data Converter	A/D 20x12b; D/A 3x12b
Data Bus Width	16 bit
Seated Height-Max	1 mm
Number of Timers/Counters	1 Timer
Product Type	DSP - Digital Signal Processors & Controllers
EEPROM Size	--
On Chip Program ROM Width	8
Boundary Scan	YES
Low Power Mode	YES
Format	FIXED POINT
Integrated Cache	NO
RAM (words)	24576
Number of Timers	1
ROM Programmability	FLASH
Number of Cores	1 Core
Number of External Interrupts	4
Barrel Shifter	YES
Internal Bus Architecture	SINGLE
On Chip Data RAM Width	8
Number of DMA Channels	4
Product	DSCs
Product Category	Digital Signal Processors & Controllers - DSP, DSC
Length	9mm
Height Seated (Max)	1mm
Width	9mm

DSPIC33CK256MP206-E/MR Product Details

DSPIC33CK256MP206-E/MR Overview

64-VFQFN Exposed Pad-packages are available. There are 53 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 16-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~125°C TA for this Microcontroller. An electrical component of this type belongs to the Automotive, AEC-Q100, dsPIC™ 33CK series. This program memory has a size of 256KB 256K x 8, which indicates what the size of the program memory is. dsPIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 64 terminations on MCU chip. You get a 16-bit size. This Microcontroller chip is powered by 3.3V volts. The base part number DSPIC33CK256MP206 provides alternatives. Using the timer/counter system, it has 1 Timer timers/counters. It's got a 64MHz clock. In this part, there are 4 interrupts that are external to the system. There are 1 bits on a Integrated Circuit chip.
