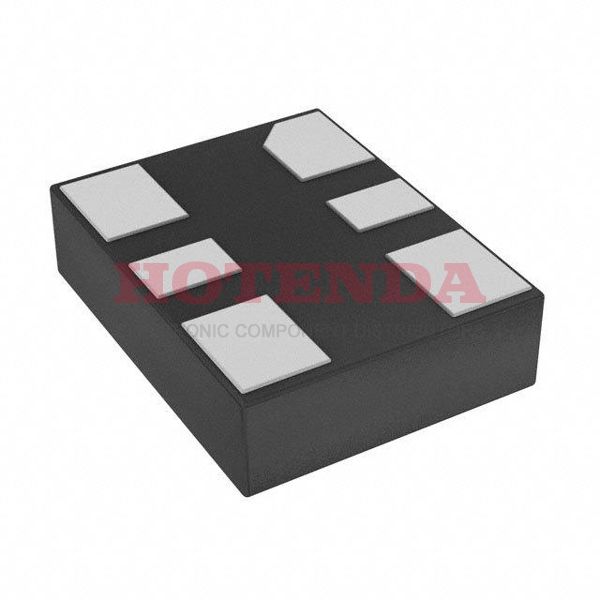

DSC1103CI2-200.0000 datasheet pdf and Oscillators product details from Microchip Technology stock available on our website
SOT-23
DSC1103CI2-200.0000 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
6-SMD, No Lead
Operating Temperature
-40°C~85°C
Packaging
Tube
Series
DSC1103
Size / Dimension
0.126Lx0.098W 3.20mmx2.50mm
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Type
XO (Standard)
Voltage - Supply
2.25V~3.63V
Frequency
200MHz
Frequency Stability
±25ppm
Output
LVDS
Function
Standby (Power Down)
Base Resonator
MEMS
Physical Dimension
3.2mm x 2.5mm x 0.85mm
Operating Frequency
200MHz
Symmetry-Max
52/48%
Current - Supply (Disable) (Max)
95μA
Max Supply Current
32mA
Height
889μm
Height Seated (Max)
0.035 0.90mm
RoHS Status
ROHS3 Compliant
Ratings
AEC-Q100
In-Stock:2059 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$3.480000
$3.48
10
$3.283019
$32.83019
100
$3.097188
$309.7188
500
$2.921875
$1460.9375
1000
$2.756486
$2756.486
DSC1103CI2-200.0000 Product Details
The Microchip DSC1103CI2-200.0000 is a low-voltage differential signaling (LVDS) MEMS oscillator with a frequency of 200.0000MHz. It is a surface-mount device (SMD) that is designed for use in a wide range of applications, including communications, computing, consumer electronics, and automotive. The oscillator features a low power consumption of 1.2 mW, a low jitter of 0.5 ps, and a wide operating temperature range of -40°C to +85°C. It also has a high stability of ±50 ppm over the full temperature range. The oscillator is RoHS compliant and is available in a variety of package sizes. It is suitable for use in a variety of applications, including clock and data recovery, clock synchronization, and timing applications.
