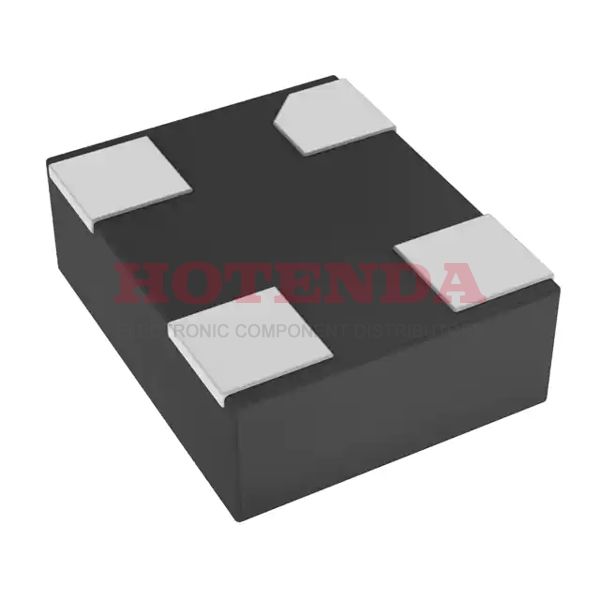

Name: DSC1001DL5-024.5760
Brand: Microchip Technology
SKU: DSC1001DL5-024.5760
Price: 1.72000 USD
Availability: InStock

new-10%

DSC1001DL5-024.5760

Manufacturer part number:DSC1001DL5-024.5760

Manufacturer:Microchip Technology

Description:DSC1001DL5-024.5760 datasheet pdf and Oscillators product details from Microchip Technology stock available on our website

Case Package:SOT-23

Datasheet:DSC1001DL5-024.5760 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Operating Temperature	-40°C~105°C
Packaging	Tube
Series	DSC1001
Size / Dimension	0.098Lx0.079W 2.50mmx2.00mm
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	XO (Standard)
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Voltage - Supply	1.8V~3.3V
Supply Voltage	3.3V
Frequency	24.576MHz
Frequency Stability	±10ppm
Output	CMOS
Function	Standby (Power Down)
Base Resonator	MEMS
Physical Dimension	2.5mm x 2.0mm x 0.85mm
Operating Frequency	24.576MHz
Rise Time-Max	2ns
Fall Time-Max	2ns
Symmetry-Max	55/45%
Current - Supply (Disable) (Max)	15μA
Max Supply Current	6.3mA
Height	889μm
Height Seated (Max)	0.035 0.90mm
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q100

DSC1001DL5-024.5760 Product Details

DSC1001DL5-024.5760 Description

Utmel Electronics is the distributor of Microchip Technology's DSC1001DL5-024.5760. It fits with the MEMS category. It is used in a variety of industries, such as communications equipment and automotive entertainment systems. Networking over wires electronic devices printers and connected peripherals. The MEMS Oscillator Low Power, -40C-105C, 10ppm are this part's primary specifications. It is also environmentally friendly and RoHS compliant (lead free).
