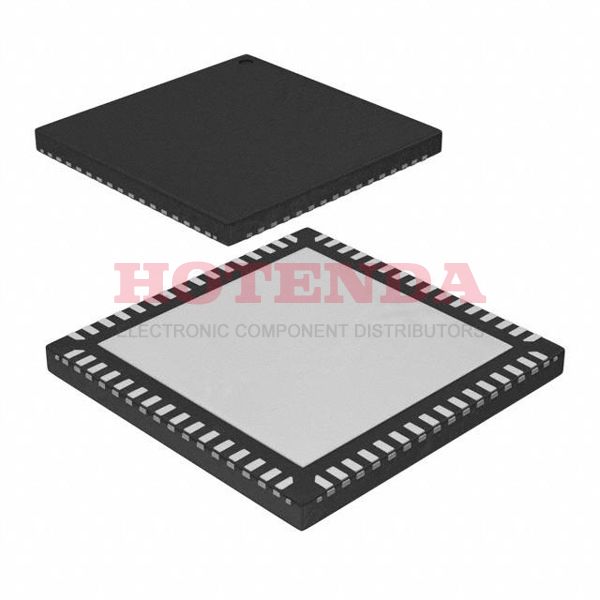

Name: ATXMEGA384C3-MNR
Brand: Microchip Technology
SKU: ATXMEGA384C3-MNR
Availability: InStock

new-10%

ATXMEGA384C3-MNR

Manufacturer part number:ATXMEGA384C3-MNR

Manufacturer:Microchip Technology

Description:384KB 384K x 8 FLASH AVR 8/16-Bit Microcontroller AVR® XMEGA® C3 Series ATXMEGA384 64 Pin 32MHz 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATXMEGA384C3-MNR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Number of Pins	64
Supplier Device Package	64-QFN (9x9)
Data Converters	A/D 16x12b
Package	Tape & Reel (TR)
Base Product Number	ATXMEGA384
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	AVR® XMEGA® C3
Published	2014
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Frequency	32MHz
Base Part Number	ATXMEGA384
Operating Supply Voltage	3.3V
Interface	I2C, IrDA, SPI, UART, USART, USB
Max Supply Voltage	3.6V
Min Supply Voltage	1.6V
Memory Size	384kB
Oscillator Type	Internal
Number of I/O	50
Speed	32MHz
RAM Size	32K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.6V~3.6V
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8/16-Bit
Program Memory Size	384KB 384K x 8
Connectivity	I2C, IrDA, SPI, UART/USART, USB
Data Converter	A/D 16x12b
Watchdog Timer	Yes
Number of Timers/Counters	5
Core Architecture	AVR
EEPROM Size	4K x 8
Max Frequency	32MHz
Number of Programmable I/O	50
RoHS Status	ROHS3 Compliant

ATXMEGA384C3-MNR Product Details

ATXMEGA384C3-MNR Overview

In a 64-VFQFN Exposed Pad package, the MCU is available. 50 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8/16-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~105°C TA that is operated by this Microcontroller. AVR® XMEGA® C3 series components make up this electrical component. 384KB 384K x 8 is the size of its program memory. A AVR Core processor is used to power the device. 384kB is the memory size of the part. The base part number ATXMEGA384 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 32MHz. Located on the chip are 64 pins. The clock has 5 timers or counters on it. It has built-in FLASH memory. There is an integrated AVR core architecture in it. It programs in 50 Programmable I/O.
