Name: ATXMEGA16E5-AU
Brand: Microchip Technology
SKU: ATXMEGA16E5-AU
Price: 3.68000 USD
Availability: InStock

new-10%

ATXMEGA16E5-AU

Manufacturer part number:ATXMEGA16E5-AU

Manufacturer:Microchip Technology

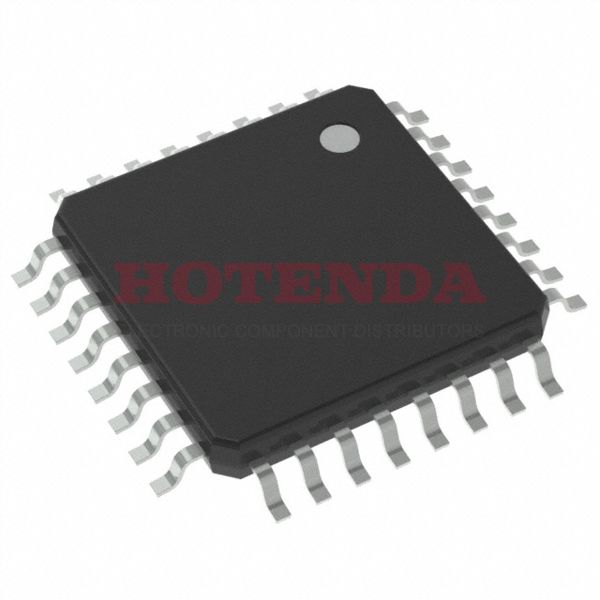

Description:16KB 8K x 16 FLASH AVR 8/16-Bit Microcontroller AVR® XMEGA® E5 Series ATXMEGA16 32 Pin 32MHz 1.8V 32-TQFP

Case Package:SOT-23

Datasheet:ATXMEGA16E5-AU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-TQFP
Surface Mount	YES
Number of Pins	32
Supplier Device Package	32-TQFP (7x7)
Number of Terminals	32
Mounting Style	SMD/SMT
Data Converters	A/D 16x12b, D/A 2x12b
Family Name	AVR XMEGA
Instruction Set Architecture	RISC
Dimensions	7.1 x 7.1 x 1.05mm
Typical Operating Supply Voltage	1.6 → 3.6 V
Package Type	TQFP
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
MSL	-
Qualification	-
Interfaces	I2C, SPI, UART
Number of I/Os	26 I/O
Interface Type	2-Wire, SPI, USART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	XMEGA
RoHS	Details
Package	Tray
Base Product Number	ATXMEGA16
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	26
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	AVR® XMEGA® E5
Published	2014
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Terminal Finish	Matte Tin (Sn)
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	1.8V
Terminal Pitch	0.8 mm
Reach Compliance Code	compliant
Frequency	32MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATXMEGA16
Pin Count	32
JESD-30 Code	S-PQFP-G32
Qualification Status	Not Qualified
Power Supplies	1.8/3.3 V
Temperature Grade	INDUSTRIAL
Interface	2-Wire, I2C, IrDA, SPI, USART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	26
Speed	32MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	1.6V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8/16-Bit
Program Memory Size	16KB 8K x 16
Connectivity	I2C, IrDA, SPI, UART/USART
Supply Current-Max	10 mA
Bit Size	16
Data Converter	A/D 16x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.2 mm
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
ROM (words)	8192
EEPROM Size	512 x 8
On Chip Program ROM Width	16
CPU Family	AVR RISC
Boundary Scan	NO
Low Power Mode	NO
Number of A/D Converters	1
Format	FIXED-POINT
Integrated Cache	NO
RAM (words)	1024
Number of UART Channels	2
RAM (bytes)	2048
Number of ADC Channels	16
Number of Serial I/Os	2
Max Junction Temperature (Tj)	105°C
Number of Timers	3
ROM Programmability	FLASH
Number of External Interrupts	2
Number of PWM Channels	8
On Chip Data RAM Width	16
Ambient Temperature Range High	85°C
Number of DMA Channels	4
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Height	1.2mm
Length	7.1mm
Width	7.1mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

ATXMEGA16E5-AU Product Details

ATXMEGA16E5-AU Overview

The package is in 32-TQFP format. The MCU has 26 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 8/16-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -40°C~85°C TA. The electrical component that you are looking at belongs to the AVR® XMEGA® E5 series of components. Microcontroller has abundant program memory size of 16KB 8K x 16. The AVR Core Processor powers the device and is one of its key features. This Microcontroller belongs to the MICROCONTROLLER, RISC uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 32 of terminations. A 16-bit operation is performed by this part. There is an output of 1.8V volts from the Microcontroller chip. A total of YES DMA channels are available on MCU chip. This MCU is implemented with 16kB memory. ATXMEGA16 serves as a base part number to find alternatives. It exhibits good efficiency when it operates at a frequency of 32MHz and it is able to operate at a high frequency. It is possible for the device to work with the motor using the PWM channel YES. It is possible to access the 32 pins on the chip through the 32 pins. It is equipped with 3 timers and counters. It consists of 32 pins. As far as the CPU is concerned, it is embedded with the the AVR RISC family of processors. The device features 8 UART channels. There are a total of 16 channels for the ADC on this board, so it has a total of 16 channels. The device contains 1 A/D converters. An 8-channel PWM controller is used by the device. A total of 2 serial I/Os are included in the electronic part. An external interrupt is included with the chip part, which consists of 2 interrupts. An entire Microcontroller chip has 3 bits.
