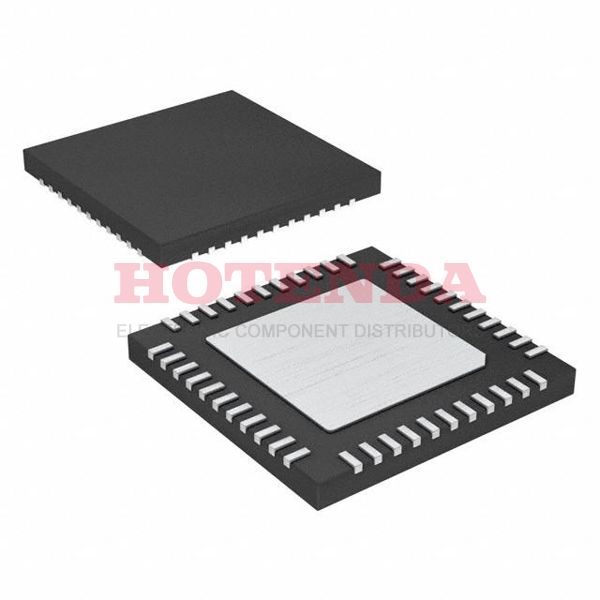

Name: ATXMEGA16A4U-MN
Brand: Microchip Technology
SKU: ATXMEGA16A4U-MN
Availability: InStock

new-10%

ATXMEGA16A4U-MN

Manufacturer part number:ATXMEGA16A4U-MN

Manufacturer:Microchip Technology

Description:16KB 8K x 16 FLASH AVR 8/16-Bit Microcontroller AVR® XMEGA® A4U Series ATXMEGA16 44 Pin 32MHz 44-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATXMEGA16A4U-MN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-VFQFN Exposed Pad
Number of Pins	44
Supplier Device Package	44-VQFN (7x7)
Data Converters	A/D 12x12b, D/A 2x12b
Package	Tray
Base Product Number	ATXMEGA16
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	0°C~105°C TA
Packaging	Tray
Series	AVR® XMEGA® A4U
Published	2008
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	105°C
Min Operating Temperature	0°C
Frequency	32MHz
Base Part Number	ATXMEGA16
Operating Supply Voltage	3.3V
Interface	I2C, IrDA, SPI, UART, USART, USB
Max Supply Voltage	3.6V
Min Supply Voltage	1.6V
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	34
Speed	32MHz
RAM Size	2K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.6V~3.6V
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8/16-Bit
Program Memory Size	16KB 8K x 16
Connectivity	I2C, IrDA, SPI, UART/USART, USB
Data Converter	A/D 12x12b; D/A 2x12b
Watchdog Timer	Yes
Number of Timers/Counters	5
Core Architecture	AVR
EEPROM Size	1K x 8
Max Frequency	32MHz
Number of Programmable I/O	34
RoHS Status	ROHS3 Compliant

ATXMEGA16A4U-MN Product Details

ATXMEGA16A4U-MN Overview

44-VFQFN Exposed Pad-packages are available. There are 34 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8/16-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of 0°C~105°C TA for this Microcontroller. An electrical component of this type belongs to the AVR® XMEGA® A4U series. This program memory has a size of 16KB 8K x 16, which indicates what the size of the program memory is. AVR Core processors are used in MCU. The part has a memory size of 16kB. The base part number ATXMEGA16 provides alternatives. This device is extremely efficient when operated at a frequency of 32MHz. In this chip, 44 pins can be accessed. Using the timer/counter system, it has 5 timers/counters. There is FLASH memory in this equipment. As a result of its AVR core architecture, it can be used in many applications. This device has 34 programmable input and output channels.
