Name: ATXMEGA128D4-ANR
Brand: Microchip Technology
SKU: ATXMEGA128D4-ANR
Availability: InStock

new-10%

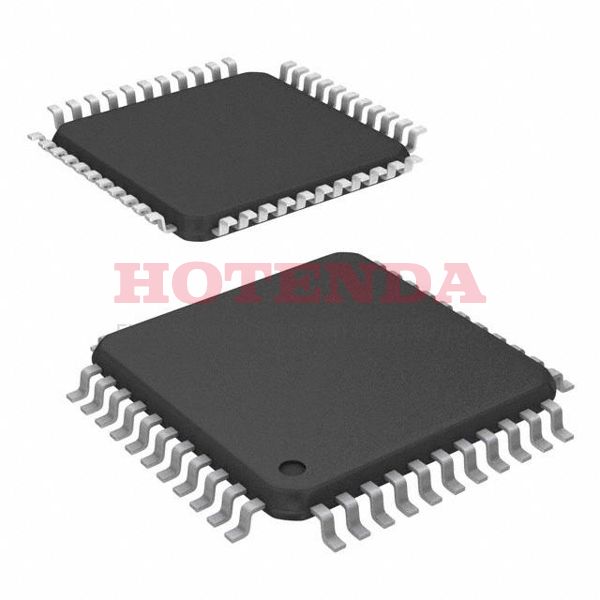

ATXMEGA128D4-ANR

Manufacturer part number:ATXMEGA128D4-ANR

Manufacturer:Microchip Technology

Description:128KB 64K x 16 FLASH AVR 8/16-Bit Microcontroller AVR® XMEGA® D4 Series ATXMEGA128 44 Pin 32MHz 3V 44-TQFP

Case Package:SOT-23

Datasheet:ATXMEGA128D4-ANR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-TQFP
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-TQFP (10x10)
Number of Terminals	44
Interfaces	SPI/TWI/USART
Data Converters	A/D 12x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATXMEGA128
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	36
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	AVR® XMEGA® D4
Published	2014
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Additional Feature	IT IS ALSO OPERATES IN 12 MHZ AT 1.6V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	32MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	ATXMEGA128
JESD-30 Code	S-PQFP-G44
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Interface	I2C, IrDA, SPI, UART, USART
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	34
Speed	32MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	1.6V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8/16-Bit
Program Memory Size	128KB 64K x 16
Connectivity	I2C, IrDA, SPI, UART/USART
Bit Size	16
Data Converter	A/D 12x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	4
EEPROM Size	2K x 8
ROM Programmability	FLASH
Device Core	AVR
Length	10mm
Height Seated (Max)	1.2mm
Width	10mm
RoHS Status	ROHS3 Compliant

ATXMEGA128D4-ANR Product Details

ATXMEGA128D4-ANR Overview

There is a 44-TQFP package available. The board has 34 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8/16-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~105°C TA is the temperature range at which this Microcontroller operates. AVR® XMEGA® D4-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 128KB 64K x 16. Powered by a AVR Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 44. As a result, this Microcontroller comes with a 16-bit size. Input voltage for the chip is 3V volts. A total of NO DMA channels are available. This IC part has a memory size of 128kB. There are a number of alternatives to the base part number ATXMEGA128 that you can find. Performing well when operated at frequency 32MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 44 pins that can be accessed. It comes with 4 timers/counters that can be set up. In addition to these features, there are a number of other ones, such as this one: IT IS ALSO OPERATES IN 12 MHZ AT 1.6V.
