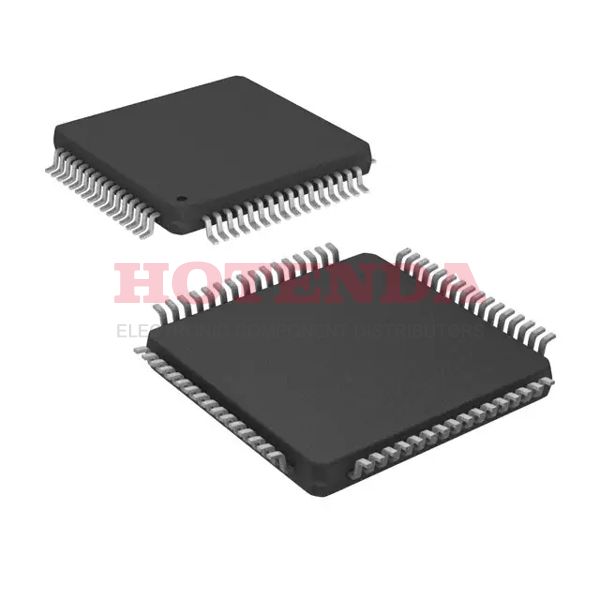

Name: ATXMEGA128C3-AUR
Brand: Microchip Technology
SKU: ATXMEGA128C3-AUR
Price: 5.64000 USD
Availability: InStock

new-10%

ATXMEGA128C3-AUR

Manufacturer part number:ATXMEGA128C3-AUR

Manufacturer:Microchip Technology

Description:128KB 64K x 16 FLASH AVR 8/16-Bit Microcontroller AVR® XMEGA® C3 Series ATXMEGA128 64 Pin 32MHz 3V 64-TQFP

Case Package:SOT-23

Datasheet:ATXMEGA128C3-AUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-TQFP
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-TQFP (14x14)
Number of Terminals	64
Mounting Style	SMD/SMT
Interfaces	SPI/TWI/USART/USB
Data Converters	A/D 16x12b
Number of I/Os	50 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	2-Wire, SPI, USB
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	XMEGA
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATXMEGA128
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	50
Operating Temperature	-40°C~85°C TA
Packaging	Cut Tape (CT)
Series	AVR® XMEGA® C3
Published	2010
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Finish	Matte Tin (Sn)
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	32MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATXMEGA128
JESD-30 Code	S-PQFP-G64
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	1.8/3.3V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.6V
Interface	2-Wire, I2C, IrDA, SPI, UART, USART, USB
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	50
Speed	32MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	1.6V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8/16-Bit
Program Memory Size	128KB 64K x 16
Connectivity	I2C, IrDA, SPI, UART/USART, USB
Supply Current-Max	12 mA
Bit Size	16
Data Converter	A/D 16x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	5
Product Type	8-bit Microcontrollers - MCU
ROM (words)	65536
EEPROM Size	2K x 8
CPU Family	AVR RISC
RAM (bytes)	8192
Number of ADC Channels	16
ROM Programmability	FLASH
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Length	14mm
Height Seated (Max)	1.2mm
Width	14 mm
RoHS Status	ROHS3 Compliant

ATXMEGA128C3-AUR Product Details

ATXMEGA128C3-AUR Overview

The package is 64-TQFP-shaped. There are 50 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 8/16-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~85°C TA are operated by this Microcontroller. It is part of the AVR® XMEGA® C3 series of electrical components. Having a size of 128KB 64K x 16, Microcontroller has a program memory of X bytes. A AVR Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. IC Chip 64 has 64 terminations. 16-bits are used for its size. IC Chip has 3V volt supply outputs. With YES DMA channels, Microcontroller chip can handle large data transfers. 128kB is the size of the memory in the IC part. Using the base part number ATXMEGA128, you will be able to find alternatives for the part. Using a 32MHz frequency, this electronic part can perform efficiently. Devices work in YES PWM channels. On the chip, 64 pins are accessible. In total, there are 5 timers/counters on the device. There is an embedded the AVR RISC CPU family inside the device, which makes it a powerful device. The ADC channel count on this device totals up to 16 channels.
