Name: ATTINY461A-SUR
Brand: Microchip Technology
SKU: ATTINY461A-SUR
Price: 1.60000 USD
Availability: InStock

new-10%

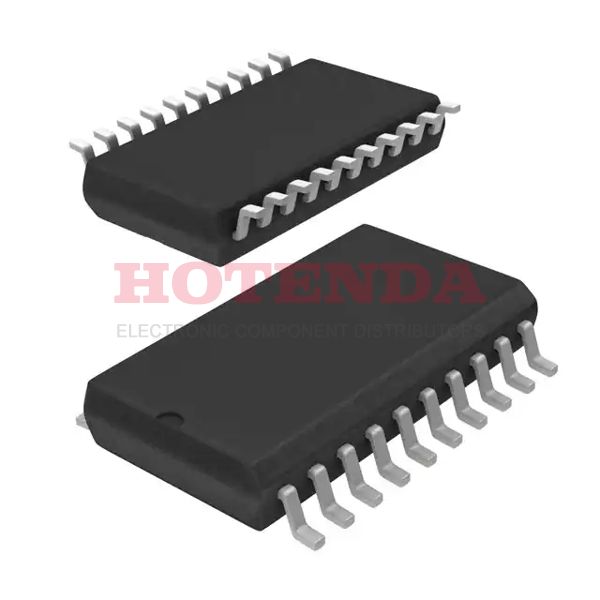

ATTINY461A-SUR

Manufacturer part number:ATTINY461A-SUR

Manufacturer:Microchip Technology

Description:4KB 2K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATtiny Series ATTINY461A 20 Pin 20MHz 5V 20-SOIC (0.295, 7.50mm Width)

Case Package:SOT-23

Datasheet:ATTINY461A-SUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295, 7.50mm Width)
Surface Mount	YES
Number of Pins	20
Supplier Device Package	20-SOIC
Number of Terminals	20
Mounting Style	SMD/SMT
Interfaces	SPI
Data Converters	A/D 11x10b
DAC Resolution	-
Number of I/Os	16 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	AVR
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATTINY461
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Number of I/O Lines	16
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	AVR® ATtiny
Published	1997
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	20
Terminal Finish	Matte Tin (Sn)
Additional Feature	ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 4 MHZ; AND 2.7V MINIMUM SUPPLY AT 10 MHZ
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	250
Supply Voltage	5V
Terminal Pitch	1.27 mm
Reach Compliance Code	compliant
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATTINY461A
JESD-30 Code	R-PDSO-G20
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2/5 V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	4.5V
Interface	I2C, SPI, UART, USART
Memory Size	3.5kB
Oscillator Type	Internal
Number of I/O	16
Speed	20MHz
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	4KB 2K x 16
Connectivity	USI
Supply Current-Max	7 mA
Bit Size	8
Data Converter	A/D 11x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	2.65 mm
Number of Timers/Counters	2
Product Type	8-bit Microcontrollers - MCU
ROM (words)	4096
EEPROM Size	256 x 8
CPU Family	AVR RISC
RAM (bytes)	256
Number of ADC Channels	11 Channel
ROM Programmability	FLASH
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Width	7.5 mm
Length	12.8 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

ATTINY461A-SUR Product Details
