Name: ATTINY45-15MT
Brand: Microchip Technology
SKU: ATTINY45-15MT
Availability: InStock

new-10%

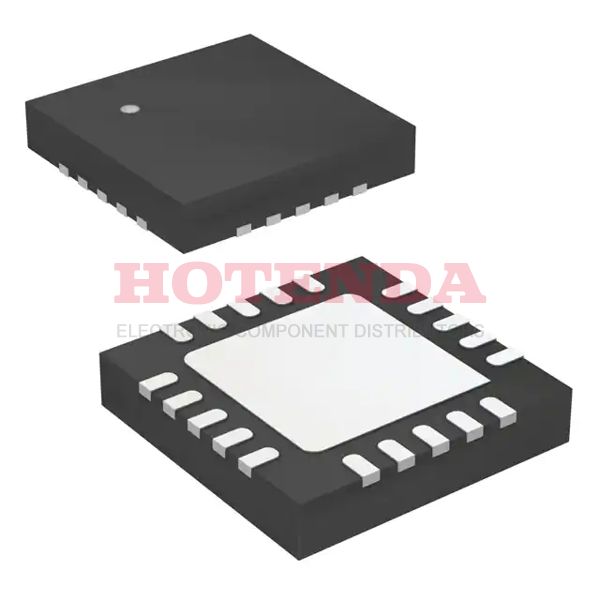

ATTINY45-15MT

Manufacturer part number:ATTINY45-15MT

Manufacturer:Microchip Technology

Description:4KB 2K x 16 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® ATtiny Series ATTINY45 20 Pin 16MHz 5V 20-WFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATTINY45-15MT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Surface Mount	YES
Number of Pins	20
Supplier Device Package	20-WQFN (4x4)
Number of Terminals	20
Data Converters	A/D 4x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATTINY45
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	6
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® ATtiny
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	20
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	5V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	16MHz
Base Part Number	ATTINY45
JESD-30 Code	S-XQCC-N20
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3/5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	4.5V
Memory Size	4kB
Oscillator Type	Internal
Number of I/O	6
Speed	16MHz
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	4KB 2K x 16
Connectivity	USI
Supply Current-Max	15 mA
Bit Size	8
Data Converter	A/D 4x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	0.8 mm
ROM (words)	4096
EEPROM Size	256 x 8
CPU Family	AVR RISC
RAM (bytes)	256
ROM Programmability	FLASH
Device Core	AVR
Length	4mm
Height Seated (Max)	0.8mm
Width	4 mm
RoHS Status	ROHS3 Compliant

ATTINY45-15MT Product Details

ATTINY45-15MT Overview

In a 20-WFQFN Exposed Pad package, the MCU is available. 6 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. Automotive, AEC-Q100, AVR® ATtiny series components make up this electrical component. 4KB 2K x 16 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 20 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 5V volt supply output on the chip. DMA channels number NO. 4kB is the memory size of the part. The base part number ATTINY45 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 16MHz. The device works in YES PWM channels. Located on the chip are 20 pins. In this device, there is a AVR RISC CPU embedded within it. I would like to mention a few additional features such as ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ in order to name a few.
