Name: ATSAML22G18A-UUT
Brand: Microchip Technology
SKU: ATSAML22G18A-UUT
Availability: InStock

new-10%

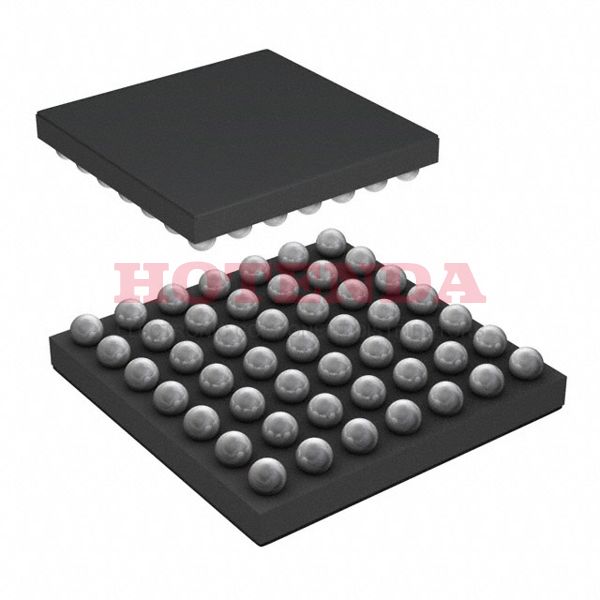

ATSAML22G18A-UUT

Manufacturer part number:ATSAML22G18A-UUT

Manufacturer:Microchip Technology

Description:256KB 256K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM L22G Series ATSAML22G 3.3V 49-UFBGA, WLCSP

Case Package:SOT-23

Datasheet:ATSAML22G18A-UUT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mounting Type	Surface Mount
Package / Case	49-UFBGA, WLCSP
Surface Mount	YES
Supplier Device Package	49-WLCSP (2.84x2.84)
Number of Terminals	49
Data Converters	A/D 10x12b
Schedule B	8542310000
RoHS	Non-Compliant
Package	Tape & Reel (TR);Cut Tape (CT);
Base Product Number	ATSAML22
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	36
Operating Temperature	-40°C~85°C TA
Packaging	Cut Tape (CT)
Series	SAM L22G
Published	2017
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	49
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	3.3V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Base Part Number	ATSAML22G
JESD-30 Code	R-XBGA-B48
Supply Voltage-Max (Vsup)	3.63V
Supply Voltage-Min (Vsup)	1.62V
Oscillator Type	Internal
Number of I/O	36
Speed	32MHz
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.63V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	I2C, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 10x12b
Has ADC	YES
DMA Channels	YES
DAC Channels	NO
Seated Height-Max	0.48 mm
ROM (words)	65536
EEPROM Size	--
On Chip Program ROM Width	32
Low Power Mode	YES
Screening Level	ISO/TS-16949
Integrated Cache	YES
RAM (words)	8192
RAM (bytes)	32768
Number of Timers	5
ROM Programmability	FLASH
Number of External Interrupts	16
On Chip Data RAM Width	32
Length	3.149mm
Height Seated (Max)	0.48mm
Width	3.048mm
RoHS Status	ROHS3 Compliant

ATSAML22G18A-UUT Product Details

ATSAML22G18A-UUT Overview

There is a 49-UFBGA, WLCSP package available. The board has 36 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. SAM L22G-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 256KB 256K x 8. Powered by a ARM® Cortex®-M0+ Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 49. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 3.3V volts. A total of YES DMA channels are available. There are a number of alternatives to the base part number ATSAML22G that you can find. As far as the clock frequency is concerned, it operates at 32MHz clock speed. The part contains 16 interrupts external to the system. The total number of bits on a MCU chip is 5.
