Name: ATSAML10E14A-UUT
Brand: Microchip Technology
SKU: ATSAML10E14A-UUT
Availability: InStock

new-10%

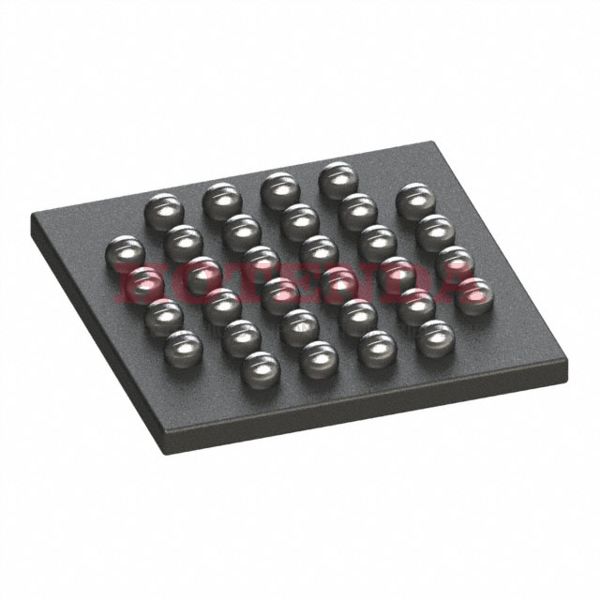

ATSAML10E14A-UUT

Manufacturer part number:ATSAML10E14A-UUT

Manufacturer:Microchip Technology

Description:16KB Flash ARM® Cortex®-M23 32-Bit Microcontroller SAM L10 Series 32-XFBGA, WLCSP

Case Package:SOT-23

Datasheet:ATSAML10E14A-UUT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Package / Case	32-XFBGA, WLCSP
Mounting Type	Surface Mount
Surface Mount	YES
Supplier Device Package	32-WLCSP (2.79x2.79)
Number of Terminals	32
ECCN (US)	3A991.a.2
HTS	8542.31.00.01
Family Name	SAM L
Instruction Set Architecture	RISC
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	32
Programmability	Yes
Interface Type	I2C/SPI/USART
No. of Timers	3
Number of ADCs	Single
ADC Resolution (bit)	12
Number of DACs	Single
DAC Resolution (bit)	10
USART	1
UART	0
I2C	1
I2S	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Minimum Operating Supply Voltage (V)	1.62
Typical Operating Supply Voltage (V)	3.3
Maximum Operating Supply Voltage (V)	3.63
Maximum Power Dissipation (mW)	800
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Package	WLCSP
Mounting	Surface Mount
Package Height	0.25(Max)
Package Length	2.79
Package Width	2.79
PCB changed	32
Interfaces	I2C/SPI/USART
Data Converters	A/D 10x12b, D/A 1x10b
Package	Tape & Reel (TR)
Base Product Number	ATSAML10
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	25
Packaging	Tape and Reel
Operating Temperature	-40°C ~ 85°C (TA)
Series	SAM L10
Part Status	Active
Technology	CMOS
Terminal Position	BOTTOM
Terminal Form	BALL
Terminal Pitch	0.4 mm
Reach Compliance Code	compliant
Pin Count	32
JESD-30 Code	S-PBGA-B32
Temperature Grade	INDUSTRIAL
Oscillator Type	Internal
Number of I/O	25
Speed	32MHz
RAM Size	4KB
Voltage - Supply (Vcc/Vdd)	1.62 V ~ 3.63 V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M23
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	Flash
Core Size	32-Bit
Program Memory Size	16KB
Connectivity	I²C, LINbus, SPI, UART/USART
Bit Size	32
Has ADC	YES
DMA Channels	YES
Data Bus Width	32 Bit
PWM Channels	YES
DAC Channels	1
Seated Height-Max	0.482 mm
Core Architecture	ARM
EEPROM Size	2K x 8
On Chip Program ROM Width	8
Screening Level	TS 16949
Ethernet	0
USB	0
ROM Programmability	FLASH
SPI	1
Device Core	ARM Cortex M23
Width	2.79 mm
Length	2.79 mm
RoHS Status	RoHS Compliant

ATSAML10E14A-UUT Product Details

ATSAML10E14A-UUT Overview

There is a 32-XFBGA, WLCSP package available. The board has 25 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is Flash. -40°C ~ 85°C (TA) is the temperature range at which this Microcontroller operates. SAM L10-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 16KB. Powered by a ARM® Cortex®-M23 Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. As a result, this Microcontroller comes with a 32-bit size. A total of YES DMA channels are available. Using YES PWM channels, the device works. The pins counted are 32. The CPU is based on ARM cores.
