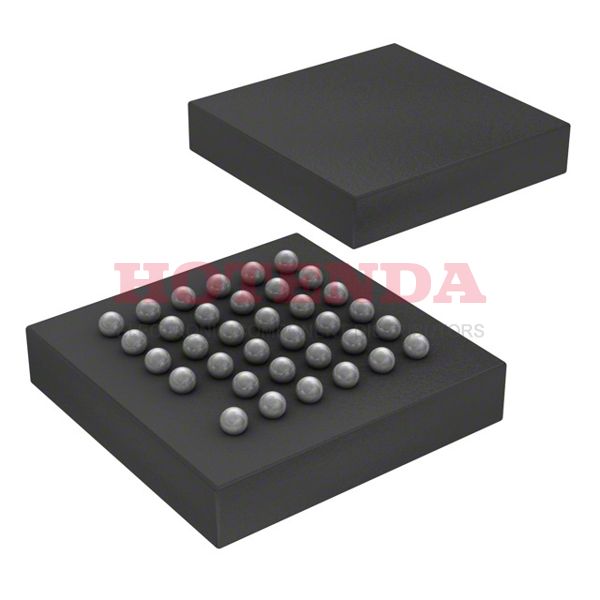

ATSAMD21E15C-UUT

Manufacturer part number:ATSAMD21E15C-UUT

Manufacturer:Microchip Technology

Description:32KB 32K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM D21E Series ATSAMD21E15 3.3V 35-XFBGA, WLCSP

Case Package:SOT-23

Datasheet:ATSAMD21E15C-UUT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	35-XFBGA, WLCSP
Surface Mount	YES
Supplier Device Package	35-WLCSP (2.82x2.53)
Number of Terminals	35
Data Converters	A/D 10x12b, D/A 1x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATSAMD21
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Number of I/O Lines	26
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	SAM D21E
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	35
HTS Code	8542.31.00.01
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	3.3V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Base Part Number	ATSAMD21E15
JESD-30 Code	R-PBGA-B35
Supply Voltage-Max (Vsup)	3.63V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.62V
Oscillator Type	Internal
Number of I/O	26
Speed	48MHz
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.63V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	32KB 32K x 8
Connectivity	I2C, LINbus, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 10x12b; D/A 1x10b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	0.483 mm
EEPROM Size	--
On Chip Program ROM Width	8
Screening Level	TS 16949
ROM Programmability	FLASH
Length	2.821mm
Height Seated (Max)	0.483mm
Width	2.529mm

ATSAMD21E15C-UUT Product Details

ATSAMD21E15C-UUT Overview

In a 35-XFBGA, WLCSP package, the MCU is available. 26 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 32-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. SAM D21E series components make up this electrical component. 32KB 32K x 8 is the size of its program memory. A ARM® Cortex®-M0+ Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 35 is the number of terminations on the IC chip that are present. This part works in a 32-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number YES. The base part number ATSAMD21E15 can be used to find alternatives. The device works in YES PWM channels. A 32MHz-clock frequency is used to operate it.
