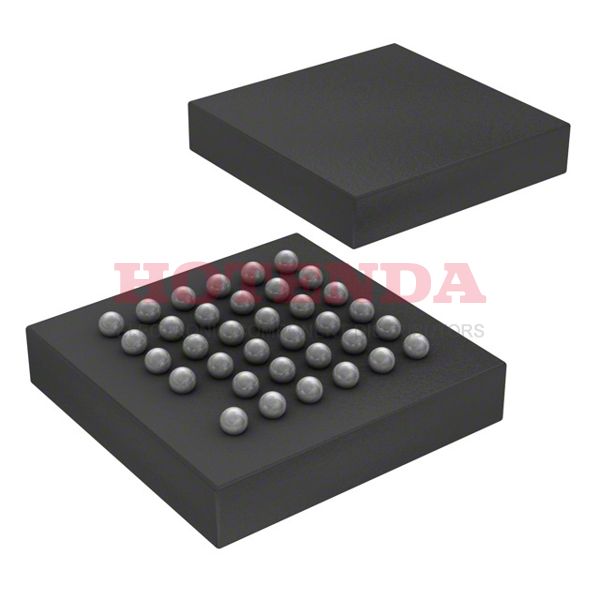

ATSAMD21E15B-UUT

Manufacturer part number:ATSAMD21E15B-UUT

Manufacturer:Microchip Technology

Description:32KB 32K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM D21E Series ATSAMD21E15 35 Pin 48MHz 3.3V 35-XFBGA, WLCSP

Case Package:SOT-23

Datasheet:ATSAMD21E15B-UUT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	26 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Contact Plating	Copper, Silver, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	35-XFBGA, WLCSP
Surface Mount	YES
Number of Pins	35
Supplier Device Package	35-WLCSP (2.82x2.53)
Number of Terminals	45
Interfaces	I2C/I2S/SPI/UART/USA
Data Converters	A/D 10x12b, D/A 1x10b
Package	Tape & Reel (TR)
Base Product Number	ATSAMD21
Mfr	Microchip Technology
Product Status	Active
Number of I/Os	26
RoHS	Compliant
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Number of I/O Lines	35
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	SAM D21E
Published	2016
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	45
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	3.3V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Frequency	48MHz
Base Part Number	ATSAMD21E15
JESD-30 Code	R-PBGA-B45
Operating Supply Voltage	3.3V
Temperature Grade	INDUSTRIAL
Interface	I2C, I2S, LIN, SPI, UART, USART, USB
Max Supply Voltage	3.63 V
Min Supply Voltage	1.62 V
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	26
Speed	48MHz
RAM Size	4K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	32KB 32K x 8
Connectivity	I2C, LINbus, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 10x12b; D/A 1x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	0.483 mm
Number of Timers/Counters	6
Core Architecture	ARM
EEPROM Size	--
Max Frequency	48 MHz
Number of Programmable I/O	26
ROM Programmability	FLASH
Device Core	ARM Cortex M0+
Length	3.481mm
Height Seated (Max)	0.483mm
Width	2.699 mm
RoHS Status	ROHS3 Compliant

ATSAMD21E15B-UUT Product Details

ATSAMD21E15B-UUT Overview

35-XFBGA, WLCSP-packages are available. There are 26 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 32-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the SAM D21E series. This program memory has a size of 32KB 32K x 8, which indicates what the size of the program memory is. ARM® Cortex®-M0+ Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 45 terminations on MCU chip. You get a 32-bit size. This Microcontroller chip is powered by 3.3V volts. There are YES DMA channels on this Microcontroller chip. The part has a memory size of 32kB. The base part number ATSAMD21E15 provides alternatives. This device is extremely efficient when operated at a frequency of 48MHz. Using the PWM channel YES, the device works with the motor. In this chip, 35 pins can be accessed. Using the timer/counter system, it has 6 timers/counters. There is FLASH memory in this equipment. As a result of its ARM core architecture, it can be used in many applications. This device has 26 programmable input and output channels.
