Name: ATSAMD20G18A-UUT
Brand: Microchip Technology
SKU: ATSAMD20G18A-UUT
Availability: InStock

new-10%

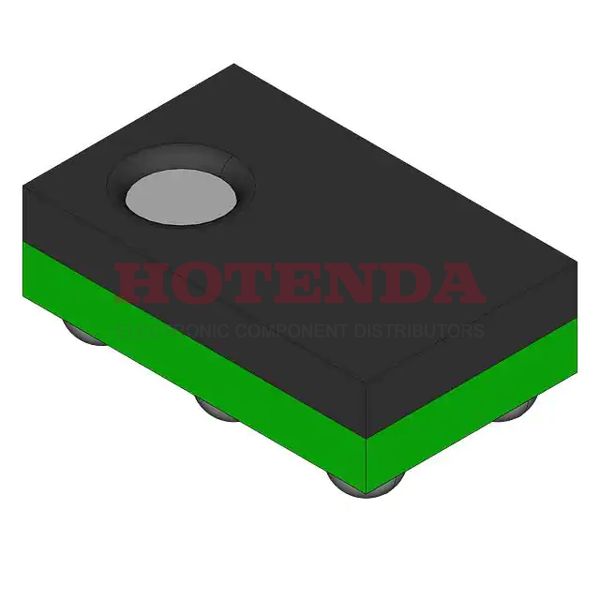

ATSAMD20G18A-UUT

Manufacturer part number:ATSAMD20G18A-UUT

Manufacturer:Microchip Technology

Description:256KB 256K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM D20G Series ATSAMD20G18 48MHz 3.3V 45-XFBGA, WLCSP

Case Package:SOT-23

Datasheet:ATSAMD20G18A-UUT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mounting Type	Surface Mount
Package / Case	45-XFBGA, WLCSP
Surface Mount	YES
Supplier Device Package	45-WLCSP
Number of Terminals	45
Data Converters	A/D 14x12b, D/A 1x10b
Number of I/Os	38
RoHS	Compliant
Package	Tape & Reel (TR)
Base Product Number	ATSAMD20
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Number of I/O Lines	35
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	SAM D20G
Published	2015
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	45
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Frequency	48MHz
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	ATSAMD20G18
JESD-30 Code	R-PBGA-B45
Supply Voltage-Max (Vsup)	3.63V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.62V
Interface	I2C, SPI, UART, USART
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	38
Speed	48MHz
RAM Size	32K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, POR, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	I2C, SPI, UART/USART
Bit Size	32
Data Converter	A/D 14x12b; D/A 1x10b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	0.483 mm
Density	2 Mb
Core Architecture	ARM
EEPROM Size	--
ROM Programmability	FLASH
Number of GPIO	38
Length	2.944mm
Height Seated (Max)	0.483mm
Width	2.699mm
RoHS Status	ROHS3 Compliant

ATSAMD20G18A-UUT Product Details

ATSAMD20G18A-UUT Overview

In a 45-XFBGA, WLCSP package, the MCU is available. 38 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 32-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. SAM D20G series components make up this electrical component. 256KB 256K x 8 is the size of its program memory. A ARM® Cortex®-M0+ Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 45 is the number of terminations on the IC chip that are present. This part works in a 32-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number NO. 256kB is the memory size of the part. The base part number ATSAMD20G18 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 48MHz. The device works in YES PWM channels. It has built-in FLASH memory. There is an integrated ARM core architecture in it.
