Name: ATSAMC21J17A-UUT
Brand: Microchip Technology
SKU: ATSAMC21J17A-UUT
Availability: InStock

new-10%

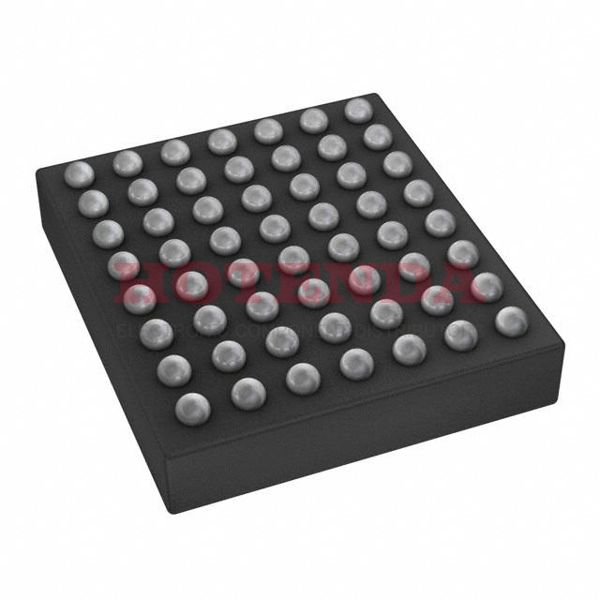

ATSAMC21J17A-UUT

Manufacturer part number:ATSAMC21J17A-UUT

Manufacturer:Microchip Technology

Description:128KB 128K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM C21 Series 5V 56-UFBGA, WLCSP

Case Package:SOT-23

Datasheet:ATSAMC21J17A-UUT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Mounting Type	Surface Mount
Package / Case	56-UFBGA, WLCSP
Surface Mount	YES
Supplier Device Package	56-WLCSP (3.17x3.44)
Number of Terminals	56
Package	Tape & Reel (TR)
Base Product Number	ATSAMC21
Mfr	Microchip Technology
Data Converters	A/D 20x12b Sigma-Delta; D/A 1x10b
Product Status	Active
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Number of I/O Lines	44
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	SAM C21
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	56
HTS Code	8542.31.00.01
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	5V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
JESD-30 Code	R-PBGA-B56
Supply Voltage-Max (Vsup)	5.5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	2.7V
Oscillator Type	Internal
Number of I/O	44
Speed	48MHz
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT
Clock Frequency	48MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	128KB 128K x 8
Connectivity	CANbus, I2C, LINbus, SPI, UART/USART
Bit Size	32
Data Converter	A/D 20x12b Sigma-Delta; D/A 1x10b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	0.483 mm
EEPROM Size	-
On Chip Program ROM Width	8
Screening Level	TS 16949
ROM Programmability	FLASH
Height Seated (Max)	0.483mm
Width	3.17mm
Length	3.444 mm

ATSAMC21J17A-UUT Product Details

ATSAMC21J17A-UUT Overview

This Microcontroller comes in a 56-UFBGA, WLCSP package. This Microcontroller has 44 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in SAM C21 Series. The size of the program memory of Microcontroller is 128KB 128K x 8. MCU is powered by ARM® Cortex®-M0+ Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 56 terminals. Microcontroller comes with 32 bit size. The component always operates in 5V supply voltage. MCU chip has YES DMA channels. The device works in YES PWM channels. It is at 48MHz clock frequency.
