Name: ATSAM4S4BA-AU
Brand: Microchip Technology
SKU: ATSAM4S4BA-AU
Price: 5.57000 USD
Availability: InStock

new-10%

ATSAM4S4BA-AU

Manufacturer part number:ATSAM4S4BA-AU

Manufacturer:Microchip Technology

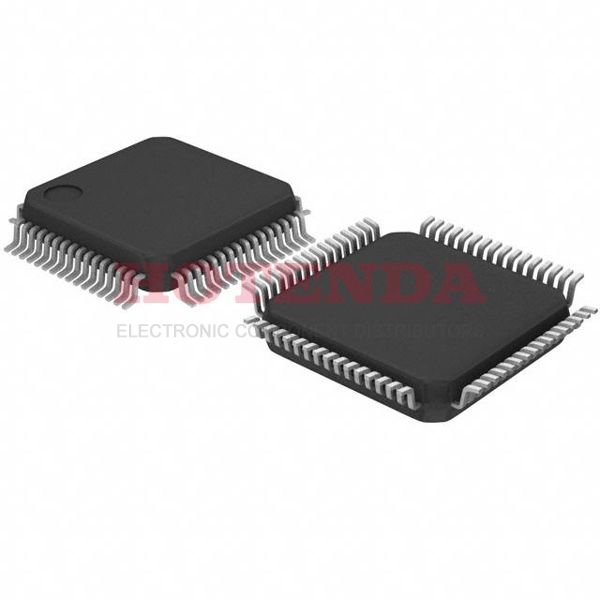

Description:256KB 256K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller SAM4S Series ATSAM4S4 64 Pin 120MHz 1.2V 64-LQFP

Case Package:SOT-23

Datasheet:ATSAM4S4BA-AU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mounting Type	Surface Mount
Package / Case	64-LQFP
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-LQFP (10x10)
Weight	342.689036mg
Number of Terminals	64
Mounting Style	SMD/SMT
Interfaces	I2C/I2S/SPI/UART/USA
Instruction Set Architecture	RISC
Clock Freq	120(MHz)
DAC Resolution	12
Operating Temperature Classification	Industrial
Package Type	LQFP
Number of Timers - General Purpose	2
Operating Temp Range	-40C to 85C
# I/Os (Max)	47
Total Internal Ram Size	64KB(kB)
Device Core Size	32(b)
Operating Supply Voltage (Max)	1.32/3.6(V)
Operating Supply Voltage (Typ)	1.2/3.3(V)
Rad Hardened	No
Operating Supply Voltage (Min)	1.08/1.62(V)
Programmable	Yes
Maximum Expanded Memory Size	16MB
Mounting	Surface Mount
Data Converters	A/D 11x12b, D/A 2x12b
MSL	MSL 3 - 168 hours
Number of I/Os	47 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, I2S, SPI, USART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package	Tray
Base Product Number	ATSAM4S
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	47
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	SAM4S
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Finish	Matte Tin (Sn) - annealed
Subcategory	Microcontrollers - MCU
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	120MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	ATSAM4S4
Pin Count	64
JESD-30 Code	S-PQFP-G64
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Operating Supply Voltage	1.2V
Supply Voltage-Max (Vsup)	1.32V
Temperature Grade	INDUSTRIAL
Interface	I2C, I2S, IrDA, SPI, UART, USART, USB
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	47
Speed	120MHz
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
Bit Size	32
Data Converter	A/D 11x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.6 mm
Number of Timers/Counters	6 Timer
Product Type	ARM Microcontrollers - MCU
Core Architecture	ARM
EEPROM Size	--
Number of ADC Channels	11
ROM Programmability	FLASH
Product	MCU
Product Category	ARM Microcontrollers - MCU
Device Core	ARM Cortex M4
Length	10mm
Height Seated (Max)	1.6mm
Width	10 mm
RoHS Status	ROHS3 Compliant

ATSAM4S4BA-AU Product Details

ATSAM4S4BA-AU Overview
