Name: ATSAM4S2BA-MU
Brand: Microchip Technology
SKU: ATSAM4S2BA-MU
Price: 4.63000 USD
Availability: InStock

new-10%

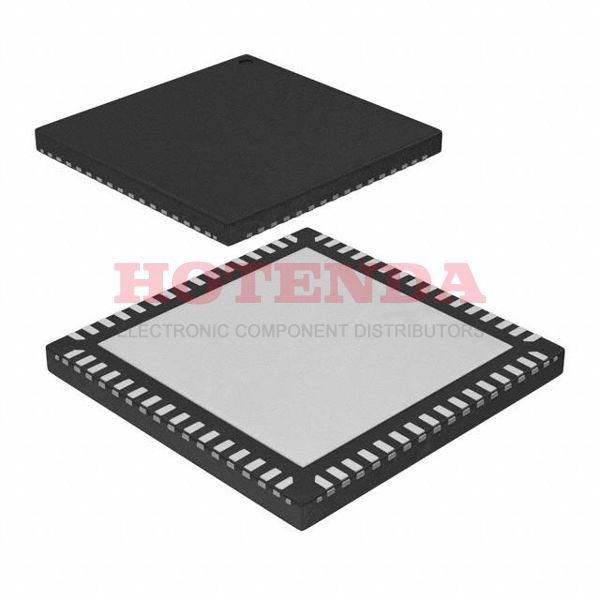

ATSAM4S2BA-MU

Manufacturer part number:ATSAM4S2BA-MU

Manufacturer:Microchip Technology

Description:128KB 128K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller SAM4S Series ATSAM4S2 64 Pin 120MHz 1.2V 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATSAM4S2BA-MU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-QFN (9x9)
Number of Terminals	64
Mounting Style	SMD/SMT
Interfaces	I2C/I2S/SPI/UART/USA
Data Converters	A/D 16x12b, D/A 2x12b
MSL	MSL 3 - 168 hours
DAC Resolution	12 bit
Number of I/Os	47 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, UART, USART
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tray
Base Product Number	ATSAM4S
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	47
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	SAM4S
Published	2016
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.31.00.01
Subcategory	Microcontrollers - MCU
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	120MHz
Base Part Number	ATSAM4S2
JESD-30 Code	S-XQCC-N64
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.08V
Interface	I2C, I2S, IrDA, SPI, UART, USART, USB
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	47
Speed	120MHz
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	128KB 128K x 8
Connectivity	I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
Bit Size	32
Data Converter	A/D 16x12b; D/A 2x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	0.9 mm
Number of Timers/Counters	2
Product Type	ARM Microcontrollers - MCU
Core Architecture	ARM
EEPROM Size	--
Number of ADC Channels	16 Channel
ROM Programmability	FLASH
Product	MCU
Product Category	ARM Microcontrollers - MCU
Device Core	ARM Cortex M4
Length	9mm
Height Seated (Max)	0.9mm
Width	9 mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

ATSAM4S2BA-MU Product Details

ATSAM4S2BA-MU Overview

The package has a 64-VFQFN Exposed Pad shape. With 47 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 32-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~85°C TA range are measured by this Microcontroller. The SAM4S series is comprised of this electrical component. The electronic part has a program memory size of 128KB 128K x 8. There's a ARM® Cortex®-M4 Core Processor inside. The IC chip fits into the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. There are 64 terminations on the IC chip. 32-bits are the size of the data that comes with MCU. A 1.2V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has YES DMA channels. Its memory size is 128kB. It is possible to find alternatives to the base part number ATSAM4S2 by using the part number search tool. An effective performance can be achieved at a frequency of 120MHz. There are a total of YES channels in the device. It is possible to access the 64 pins on the chip. In total, it has 2 timers and counters in it. This device features a ARM core architecture. The ADC channels on this device total 16 Channel in number.
