Name: ATSAM4LS2BA-AU
Brand: Microchip Technology
SKU: ATSAM4LS2BA-AU
Price: 6.96000 USD
Availability: InStock

new-10%

ATSAM4LS2BA-AU

Manufacturer part number:ATSAM4LS2BA-AU

Manufacturer:Microchip Technology

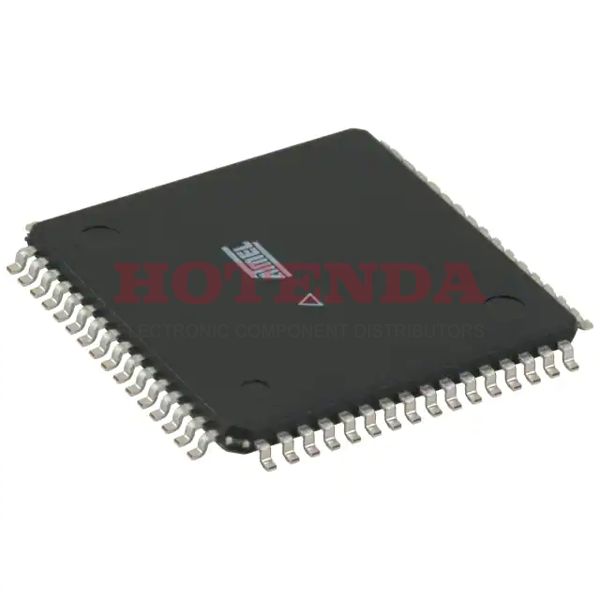

Description:128KB 128K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller SAM4L Series ATSAM4LS2 64 Pin 48MHz 3.3V 64-TQFP Exposed Pad

Case Package:SOT-23

Datasheet:ATSAM4LS2BA-AU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-TQFP Exposed Pad
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-TQFP (10x10)
Number of Terminals	64
Mounting Style	SMD/SMT
Interfaces	I2C/SPI/UART/USART/U
Data Converters	A/D 7x12b, D/A 1x10b
Number of I/Os	48 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, UART, USART, USB
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	N
Package	Tray
Base Product Number	ATSAM4LS
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	48
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	SAM4L
Published	2013
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Finish	Matte Tin (Sn)
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	48MHz
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	ATSAM4LS2
JESD-30 Code	S-PQFP-G64
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	1.8/3.3 V
Temperature Grade	INDUSTRIAL
Interface	I2C, IrDA, LIN, SPI, UART, USART, USB
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	48
Speed	48MHz
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	1.68V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	128KB 128K x 8
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART, USB
Supply Current-Max	18.24 mA
Bit Size	32
Data Converter	A/D 7x12b; D/A 1x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32 Bit
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.2 mm
Number of Timers/Counters	1
Product Type	ARM Microcontrollers - MCU
ROM (words)	131072
Core Architecture	ARM
EEPROM Size	--
CPU Family	CORTEX-M4
RAM (bytes)	32768
Number of ADC Channels	7 Channel
ROM Programmability	FLASH
Product	MCU
Product Category	ARM Microcontrollers - MCU
Device Core	ARM Cortex M4
Width	10 mm
Length	10 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

ATSAM4LS2BA-AU Product Details

ATSAM4LS2BA-AU Overview

There is a 64-TQFP Exposed Pad package available. The board has 48 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. SAM4L-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 128KB 128K x 8. Powered by a ARM® Cortex®-M4 Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 64. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 3.3V volts. A total of YES DMA channels are available. This IC part has a memory size of 128kB. There are a number of alternatives to the base part number ATSAM4LS2 that you can find. Performing well when operated at frequency 48MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 64 pins that can be accessed. It comes with 1 timers/counters that can be set up. The device is powered by the the CORTEX-M4 CPU family that is embedded in it. The CPU is based on ARM cores. The device has a total of 7 Channel ADC channels in total.
