Name: ATSAM4E8EB-ANR
Brand: Microchip Technology
SKU: ATSAM4E8EB-ANR
Price: 11.22000 USD
Availability: InStock

new

ATSAM4E8EB-ANR

Manufacturer part number:ATSAM4E8EB-ANR

Manufacturer:Microchip Technology

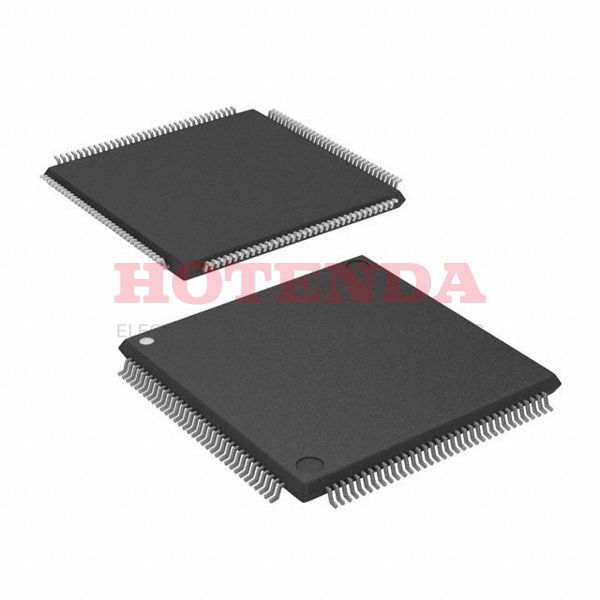

Description:512KB 512K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller SAM4E Series ATSAM4E 1.2V 144-LQFP

Case Package:SOT-23

Datasheet:ATSAM4E8EB-ANR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Package / Case	144-LQFP
Surface Mount	YES
Supplier Device Package	144-LQFP (20x20)
Number of Terminals	144
Mounting Style	SMD/SMT
Data Converters	A/D 16x12b, D/A 2x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATSAM4E
Mfr	Microchip Technology
Product Status	Active
DAC Resolution	12 bit
Number of I/Os	117 I/O
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Interface Type	CAN, EBI, Ethernet, HSMCI, 2 x TWI, UART/USART, USB FS
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package Shape	SQUARE
Number of I/O Lines	117
Operating Temperature	-40°C~105°C TA
Packaging	Cut Tape (CT)
Series	SAM4E
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
HTS Code	8542.31.00.01
Subcategory	Microcontrollers - MCU
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Base Part Number	ATSAM4E
JESD-30 Code	S-PQFP-G144
Supply Voltage-Max (Vsup)	1.32V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.08V
Oscillator Type	Internal
Number of I/O	117
Speed	120MHz
RAM Size	128K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency	20MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	512KB 512K x 8
Connectivity	CANbus, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 16x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	32 bit
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.6 mm
Number of Timers/Counters	9 Timer
Address Bus Width	24
Product Type	ARM Microcontrollers - MCU
ROM (words)	131072
EEPROM Size	--
On Chip Program ROM Width	32
CPU Family	CORTEX-M4F
Low Power Mode	YES
External Data Bus Width	8
RAM (words)	32768
RAM (bytes)	131072
Number of Timers	3
ROM Programmability	FLASH
On Chip Data RAM Width	32
Number of DMA Channels	4
Product	MCU+DSP+FPU
Product Category	ARM Microcontrollers - MCU
Length	20mm
Height Seated (Max)	1.6mm
Width	20mm
RoHS Status	ROHS3 Compliant

ATSAM4E8EB-ANR Product Details

ATSAM4E8EB-ANR Overview

Packaged in a 144-LQFP format. A total of 117 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 32-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~105°C TA. A SAM4E series electrical component is used in this application. This program has a program memory of 512KB 512K x 8 bytes, which is the size of the program. With a ARM® Cortex®-M4 Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 144 terminations on the IC chip, which means there are 144 terminations on the integrated circuit chip. In addition, MCU chip comes with a 32-bit size. Microcontroller chip has outputs of 1.2V volts. The system has YES channels for DMA communication. Alternatives can be found by searching through the base part number ATSAM4E to find them. This MCU Chip uses YES PWM channels to operate. There are 9 Timer timers/counters in this device. The CORTEX-M4F CPU family is embedded in the device, so it can handle a wide range of operations. It runs on a 20MHz clock. An integrated circuit with 3 bits has a total of 3 bits.
