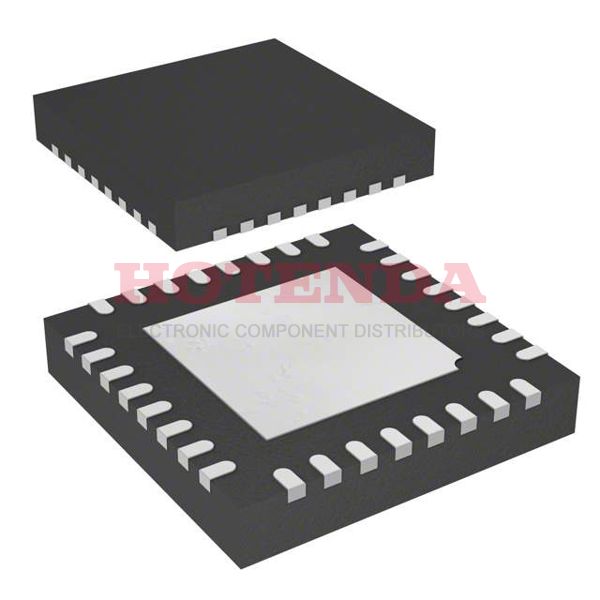

Name: ATMEGA64M1-15MD
Brand: Microchip Technology
SKU: ATMEGA64M1-15MD
Availability: InStock

new-10%

ATMEGA64M1-15MD

Manufacturer part number:ATMEGA64M1-15MD

Manufacturer:Microchip Technology

Description:64KB 32K x 16 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® ATmega Series ATMEGA64M1 32 Pin 16MHz 5V 32-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATMEGA64M1-15MD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	Production (Last Updated: 2 years ago)
Factory Lead Time	16 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	32
Supplier Device Package	32-QFN (7x7)
Number of Terminals	32
Mounting Style	SMD/SMT
Data Converters	A/D 11x10b; D/A 1x10b
RoHS	Compliant
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA64
Mfr	Microchip Technology
Product Status	Active
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	AVR
Package Shape	SQUARE
Operating Temperature	-40°C~150°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® ATmega
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Max Operating Temperature	150 °C
Min Operating Temperature	-40 °C
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	5V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Frequency	16MHz
Base Part Number	ATMEGA64M1
JESD-30 Code	S-XQCC-N32
Qualification Status	Not Qualified
Operating Supply Voltage	5V
Power Supplies	5V
Temperature Grade	AUTOMOTIVE
Interface	CAN, LIN, SPI, UART, USART
Max Supply Voltage	5.5 V
Min Supply Voltage	4.5 V
Memory Size	64kB
Oscillator Type	Internal
Speed	16MHz
RAM Size	4K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	64KB 32K x 16
Connectivity	CANbus, LINbus, SPI, UART/USART
Supply Current-Max	30 mA
Bit Size	8
Data Converter	A/D 11x10b; D/A 1x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
Seated Height-Max	1 mm
Product Type	8-bit Microcontrollers - MCU
ROM (words)	65536
Core Architecture	AVR
EEPROM Size	2K x 8
CPU Family	AVR RISC
Max Frequency	16 MHz
Screening Level	AEC-Q100
RAM (bytes)	4096
ROM Programmability	EEPROM
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Length	7mm
Height Seated (Max)	1mm
Width	7 mm
RoHS Status	ROHS3 Compliant

ATMEGA64M1-15MD Product Details

ATMEGA64M1-15MD Description

ATMEGA64M1-15MD is an embedded microcontroller. Embedded MCUs are purpose-built for use in various specific applications and rely on embedded peripherals, various communications protocols, conventional operating systems (OS) or specialized real-time operating systems (RTOS), middleware, application software, and development environments. While MCU stands for microcontroller unit, it could also be interpreted as a mission controller unit since these devices are optimized for specific applications or missions.
