Name: ATMEGA64M1-15AZ
Brand: Microchip Technology
SKU: ATMEGA64M1-15AZ
Availability: InStock

new-10%

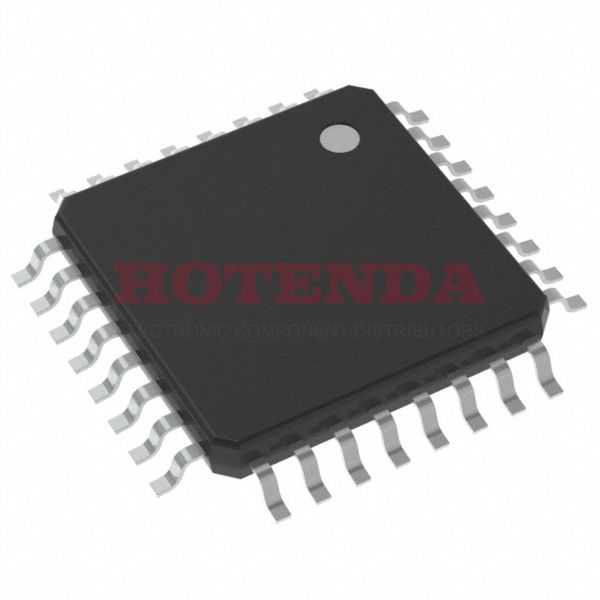

ATMEGA64M1-15AZ

Manufacturer part number:ATMEGA64M1-15AZ

Manufacturer:Microchip Technology

Description:64KB 32K x 16 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® ATmega Series ATMEGA64M1 32 Pin 16MHz 32-TQFP

Case Package:SOT-23

Datasheet:ATMEGA64M1-15AZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-TQFP
Surface Mount	YES
Number of Pins	32
Supplier Device Package	32-TQFP (7x7)
Number of Terminals	32
Interfaces	CAN/SPI/UART
Data Converters	A/D 11x10b; D/A 1x10b
RoHS	Compliant
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA64
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® ATmega
Published	1997
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Terminal Position	QUAD
Terminal Form	GULL WING
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	16MHz
Base Part Number	ATMEGA64M1
JESD-30 Code	S-PQFP-G32
Qualification Status	Not Qualified
Power Supplies	3/5V
Temperature Grade	AUTOMOTIVE
Interface	CAN, LIN, SPI, UART, USART
Max Supply Voltage	5.5 V
Min Supply Voltage	2.7 V
Memory Size	64kB
Oscillator Type	Internal
Speed	16MHz
RAM Size	4K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	64KB 32K x 16
Connectivity	CANbus, LINbus, SPI, UART/USART
Supply Current-Max	30 mA
Bit Size	8
Data Converter	A/D 11x10b; D/A 1x10b
Data Bus Width	8b
Number of Timers/Counters	2
ROM (words)	32768
Core Architecture	AVR
EEPROM Size	2K x 8
CPU Family	AVR RISC
Max Frequency	8 MHz
Number of Programmable I/O	27
RAM (bytes)	4096
ROM Programmability	FLASH
Device Core	AVR
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ATMEGA64M1-15AZ Product Details

ATMEGA64M1-15AZ Overview

In a 32-TQFP package, the MCU is available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~125°C TA that is operated by this Microcontroller. Automotive, AEC-Q100, AVR® ATmega series components make up this electrical component. 64KB 32K x 16 is the size of its program memory. A AVR Core processor is used to power the device. 32 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. 64kB is the memory size of the part. The base part number ATMEGA64M1 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 16MHz. Located on the chip are 32 pins. The clock has 2 timers or counters on it. In this device, there is a AVR RISC CPU embedded within it. It has built-in FLASH memory. There is an integrated AVR core architecture in it. It programs in 27 Programmable I/O.
