Name: ATMEGA32M1-15AD
Brand: Microchip Technology
SKU: ATMEGA32M1-15AD
Availability: InStock

new-10%

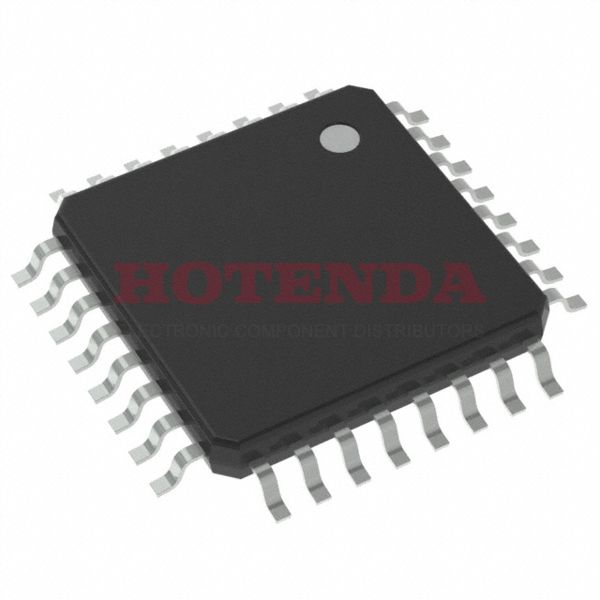

ATMEGA32M1-15AD

Manufacturer part number:ATMEGA32M1-15AD

Manufacturer:Microchip Technology

Description:32KB 16K x 16 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® ATmega Series ATMEGA32M1 32 Pin 16MHz 5V 32-TQFP

Case Package:SOT-23

Datasheet:ATMEGA32M1-15AD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-TQFP
Surface Mount	YES
Number of Pins	32
Supplier Device Package	32-TQFP (7x7)
Number of Terminals	32
Data Converters	A/D 11x10b; D/A 1x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA32
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~150°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® ATmega
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Terminal Finish	Matte Tin (Sn)
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	16MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATMEGA32M1
JESD-30 Code	S-PQFP-G32
Qualification Status	Not Qualified
Operating Supply Voltage	5V
Power Supplies	5V
Temperature Grade	AUTOMOTIVE
Interface	CAN, LIN, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Speed	16MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 16K x 16
Connectivity	CANbus, LINbus, SPI, UART/USART
Supply Current-Max	30 mA
Bit Size	8
Data Converter	A/D 11x10b; D/A 1x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
Seated Height-Max	1.2 mm
ROM (words)	32768
EEPROM Size	1K x 8
CPU Family	AVR RISC
Screening Level	AEC-Q100
RAM (bytes)	2048
ROM Programmability	EEPROM
Device Core	AVR
Length	7mm
Height Seated (Max)	1.2mm
Width	7 mm
RoHS Status	ROHS3 Compliant

ATMEGA32M1-15AD Product Details

ATMEGA32M1-15AD Overview

Packaged in a 32-TQFP format, this MCU is available in a compact size. It is important to note that the Microcontroller has a Surface Mount mounting type. 8-Bit core is the basis for this Microcontroller. This program has a type of memory called FLASH for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The Automotive, AEC-Q100, AVR® ATmega series includes this electrical component. There is 32KB 16K x 16 bytes of program memory in MCU, which corresponds to the size of the program. With a AVR Core processor, MCU is equipped with the latest technology available. This is a MICROCONTROLLER uPs/uCs/Peripheral IC. During the manufacturing process, 32 terminations were applied to the IC chip. 8-bits are used in Microcontroller. The MCU chip's supply output is 5V volts. Currently, MCU chip has NO DMA channels. 32kB memory size belongs to the Chip part. Alternatives can be found by looking at the base part number ATMEGA32M1. In the case of 16MHz frequency operation, it can perform efficiently. There are NO PWM channels on the device. The chip has 32 pins. This device is embedded with a AVR RISC processor family, which is a powerful and efficient CPU.
