Name: ATMEGA324P-A15AZ
Brand: Microchip Technology
SKU: ATMEGA324P-A15AZ
Availability: InStock

new-10%

ATMEGA324P-A15AZ

Manufacturer part number:ATMEGA324P-A15AZ

Manufacturer:Microchip Technology

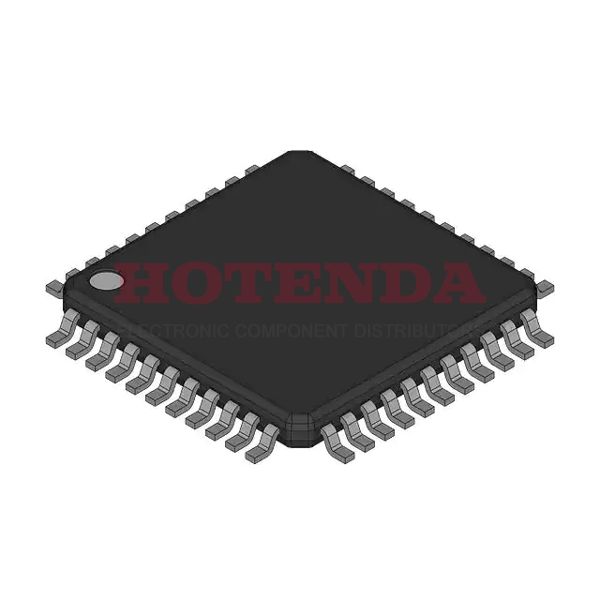

Description:32KB 16K x 16 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® ATmega Series ATMEGA324P 44 Pin 16MHz 44-TQFP

Case Package:SOT-23

Datasheet:ATMEGA324P-A15AZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-TQFP
Number of Pins	44
Supplier Device Package	44-TQFP (10x10)
Data Converters	A/D 8x10b
Number of I/Os	32
RoHS	Compliant
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA324
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® ATmega
Published	1997
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Frequency	16MHz
Base Part Number	ATMEGA324P
Interface	2-Wire, I2C, SPI, UART, USART
Max Supply Voltage	5.5V
Min Supply Voltage	2.7V
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	32
Speed	16MHz
RAM Size	2K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 16K x 16
Connectivity	I2C, SPI, UART/USART
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Data Bus Width	8b
Number of Timers/Counters	3
Core Architecture	AVR
EEPROM Size	1K x 8
Max Frequency	16MHz
Number of Programmable I/O	32
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ATMEGA324P-A15AZ Product Details

ATMEGA324P-A15AZ Overview

There is a 44-TQFP package available. The board has 32 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~125°C TA is the temperature range at which this Microcontroller operates. Automotive, AEC-Q100, AVR® ATmega-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 32KB 16K x 16. Powered by a AVR Core processor. This IC part has a memory size of 32kB. There are a number of alternatives to the base part number ATMEGA324P that you can find. Performing well when operated at frequency 16MHz can be achieved. On the chip, there are 44 pins that can be accessed. It comes with 3 timers/counters that can be set up. FLASH memory is one of the features of this equipment. The CPU is based on AVR cores. There are 32 Programmable I/Os on this computer.
